working weight：7600KG power：48Kw/2300rpm 55 Kw/2300rpm

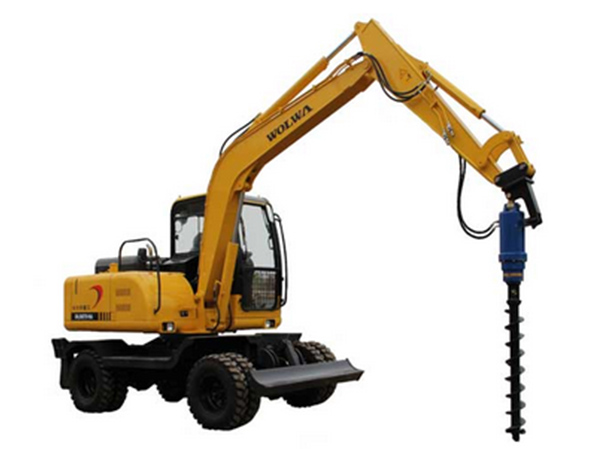

Spiral drilling machine is suitable for the drilling work, it is used for the drilling construction of electricity,highway,railway, building,petroleum and forest industry when there is wood,bridge,forests on the soil surface. With high efficiency, it can drill the soil with pebbles, rubble or even rock. The diameter of the drilling arm is 100-700mm with wide scope, could be used widely in digging holes in wood, breaking the ice.
Working weight：7600KG
Power： 48Kw/2300rpm
55 Kw/2300rpm
|
工作压力Working pressure |
Mpa |
22 |
|
额定流量rated flow |
L/min |
55*2 |
|
回转速度 swing speed |
rpm |
9.2 |
|
行走速度 travel speed |
Km/h |
0-30 |
|
铲斗挖掘力 bucket digging force |
KN |
50 |
|
斗杆挖掘力 arm digging force |
KN |
25 |
|
最大牵引力 Max.traction force |
KN |
43.2 |
|
最大扭矩 Max.torque |
N.m/rpm |
230/1800 |
|
爬坡能力 gradeability |
。 |
20 |
|
燃油箱 fuel tank |
L |
125 |
|
液压油箱 hydraulic tank |
L |
105 |
|
额定排量 rated displacement |
ml/r |
2*25 |
|
总宽 total width |
mm |
2000 |
|
总高(至驾驶室顶部)total height(to cab top) |
mm |
2710 |
|
总长度 total length |
mm |
6355 |
|
总高（至动臂顶部）total height(to arm top) |
mm |
2617 |
|
配重离地间隙 ground clearance(with load) |
mm |
985 |
|
最小离地间隙 Min. Ground clearance |
mm |
280 |
|
轮胎距离 Tyre base |
mm |
1560 |
|
车轮轴距 wheel base |
mm |
2310 |
|
推土铲（宽）dozer blade(width) |
mm |
2024 |
|
推土铲（高）dozer blade(height) |
mm |
310 |
