ZHJ-12/3 Grouting device preventing extinguishing the fire-Product-Wolwa Group Co., Ltd.

FEATURE
PARAMETER SPARE
Leave a message

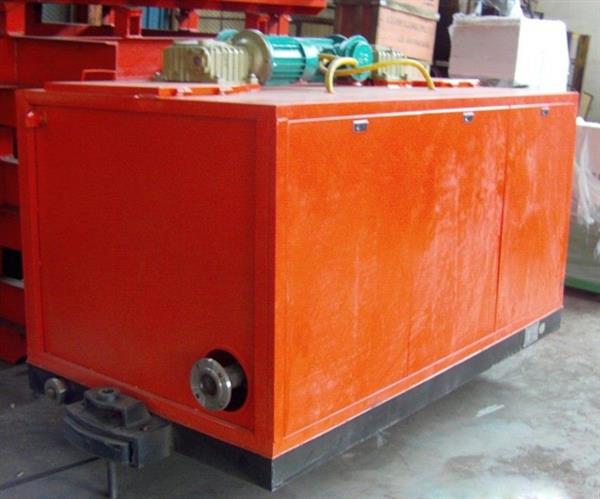

ZHJ-12/3 Grouting device preventing extinguishing the fire introduction

ZHJ - 12/3 fire extinguishing device can be in the coal mine working face and goaf grouting field with coal spontaneous combustion danger as injection water as the medium of mud, fly ash slurry, slurry class materials such as lime and chemical gel (or higher viscous liquid and mechanical impurities and solid particles concentrate) of fire-fighting equipment. It used cheap inorganic mineral materials effectively filling of the mine spontaneous combustion area, has the oxidation of coal body heat, prevent oxidation of coal, fire prevention function block air leakage passage, etc.

ZHJ-12/3 Grouting device preventing extinguishing the fire feature

1, meet the needs of the coal mine environment and mine fire prevention, with rapid mobility. Wheel, shaft of a complete set of equipment is equipped with car chassis, meet, etc., are calculated by the coal mine and gauge manufacturing standard rail type, can be directly into the downhole operation.

2, equipment matching performance is good. A complete set of equipment includes automatic mixing pulping system, pressure slurry system, pressure and flow control system and electric control system. A complete set of equipment into the work site, it starts working just by turning on the power supply.

3, has the corrosion resistance of a complete set of equipment, a complete set of equipment of the flow components (including pump body) adopt the stainless steel materials processing and manufacturing.

4 (including motor, switch), electric control system adopts mining flameproof, 380/660 v double voltage shall apply.

ZHJ-12/3 Grouting device preventing extinguishing the fire model definition

model：ZHJ-12/3

Z：device

H：prevent distinguishing fire

J：grouting

12：flowL/min

3：pressure (MPa)

ZHJ-12/3 Grouting device preventing extinguishing the fire technical feature

ZHJ - 12/3 fire-fighting grouting device is small in size, light weight, continuous operation, stable running, high production efficiency, can work in the implementation of local grouting operation, transportation, operation is convenient, is the ideal equipment of deep mine alternative grouting system. The grouting device has the following features:

1, downhole track mobile, convenient transportation;

2, mixing powder mineral materials can be two (or more than two);

3, equipped with mechanical agitation system, mechanization of production operation to realize continuous operation, as long as timely add material can produce high quality required by the slurry;

4, pump body and flow components adopt stainless steel material (1 cr18ni9ti);

5, transport, easy to operate.
