laser scanning concrete paving leveling machine introduction

Used in modern industrial buildings, shopping malls, yard, airport, square, such as the construction of large area concrete ground, laser paving leveling machine can meet the requirements for large area and flatness, levelness good construction

laser scanning concrete paving leveling machine characteristic

1Precision laser fusion and high precision of the integrated hydraulic, closed loop control technology and other high and new  technology, through the microcomputer automatic control work。

2Leveling mechanism driven by hydraulic pressure, together with the laser system and computer control system in automatic leveling leveling work done at the same time, high work efficiency。

3Used to control the ground elevation of laser transmitter is independent arrangement, floor elevation does not produce cumulative error. Compared with traditional methods, large area of the flatness as easy control, at the same time, greatly reduce the floor construction joint and template usage。

4Laser beam, the plane and two-way slope can be automatically controlled, the ground of the complex shapes of drainage equirements such as high, also optional 3 d alien ground processing system。

5Unique way of superposed driving operation, can expand the visual field, reduce the labor intensity, improve working efficiency。

6Steering and integration in the handle of forward and backward operation, the operating button and controller in seat side, make the operation more convenient
and simple。

laser scanning concrete paving leveling machine

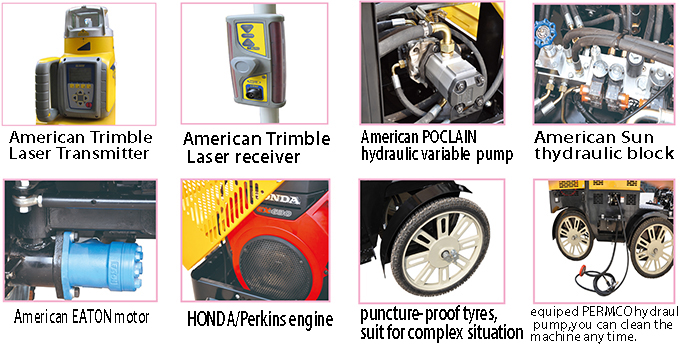

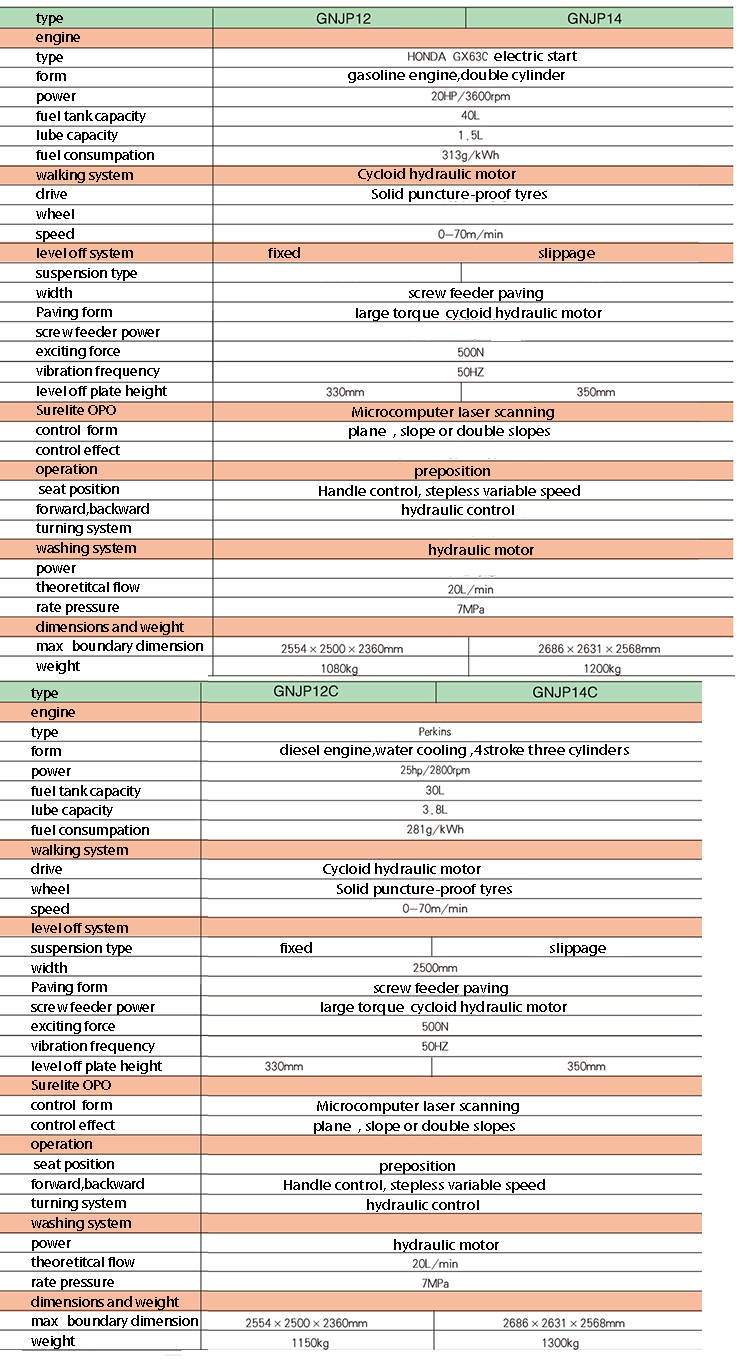

laser scanning concrete paving leveling machine Configuration

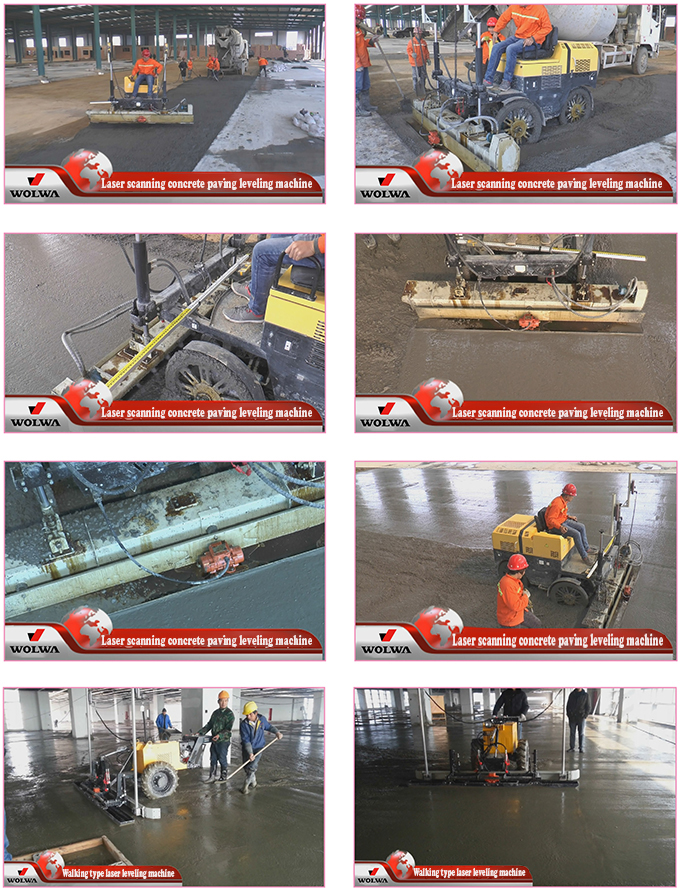

laser scanning concrete paving leveling machine working scene
