Product Summary：

Sweepertruck is an equipment of road surface cleaning, garbage collection and transportation. Can be widely used in highway, municipal, and airport pavement, the urban residential area, park road cleaning, etc. Sweeping machine not only can cleaning the garbage, but also can purify air medium of road dust removal.

Product Feature:

Standard configuration: Jiangxi Isuzu engines (JX493G, 78 horsepower), Eaton (USA) cycloid motor, stainless steel water tank, han shang solenoid valve group and the control switch (France schneider), Beijing fan, hydraulic tubing (guangzhou tianhe), sprinkler electronic pump (Shanghai xing pump) hydraulic cylinder (Shanghai runhai island).
Hydraulic oil pump adopt imported Italian; Solenoid valve with German import; Hydraulic line USES the German standard technology seal structure form, the key control unit adopts the French schneider original technology, long service life, stable and reliable, low failure rate; Hydraulic components using superposition of integration design, bridge electro-hydraulic centralized control, easy to operate; Sweep plate collision Automatic collision avoidance function, can choose according to ground sediment severity and driving speed sweep plate cleaning way; Suction nozzle is rear float type, can automatically adjust to adapt to the status of the uneven ground; Adjustable dust mist sprayed with water pressure, and eliminate the secondary pollution in water saving.


Brand	Wolwa
Name	Isuzu Sweeper Truck
Water Tank Volume	0.8-1.0 CBM
Type	CSC5060TSLJ
exempation	Vol.21,P38
environmental	Yes
Total weight	5790kg
rated weight	1050kg
equipped weight	4610Kkg
Engine	Isuzu 115motor
Geax box	5
wheel base	3360mm
Dimention	5800*1985*2350 mm
Color	as customer request
tyre	7.00-16LT
Vice engine	Jiangling 78motor
Sweeping width	≥3 m
Speed	3-15km/h
Debris	120mm
Sweeping percentage	≥95%
Box Vol	3-3.5CBM (stainless steel)

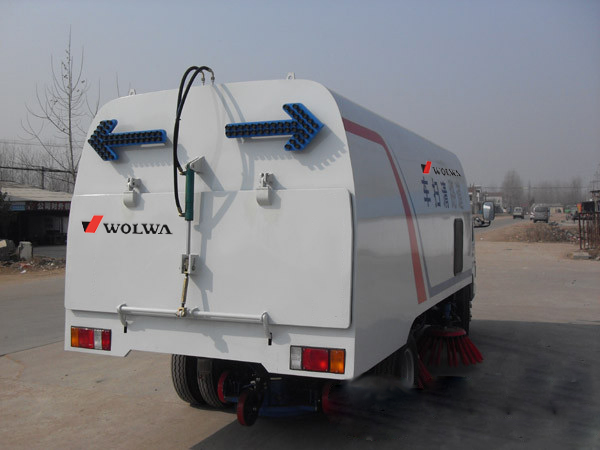

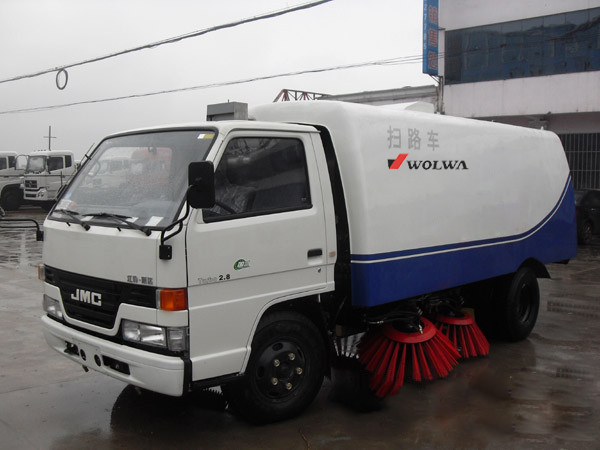

Product Picture
