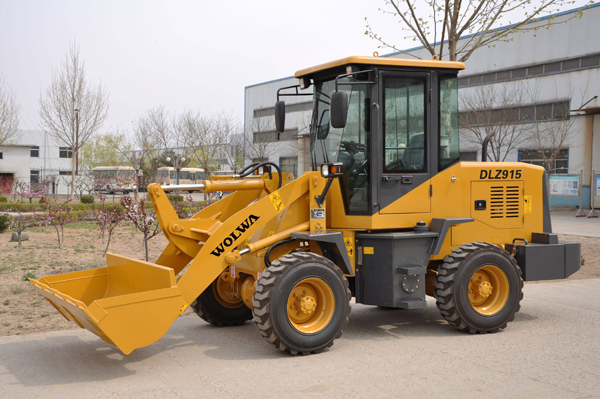

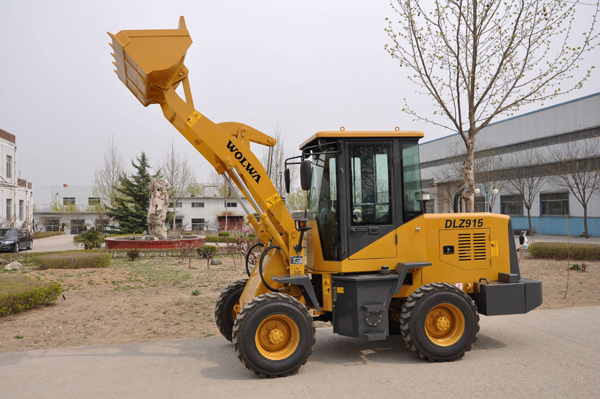

DLZ915 wheel loader

Adopt XinChai B490BG four cylinder engine; Full hydraulic transmission technology,simple structure and reliable performance;

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

DLZ915 wheel loader feature

Adopt XinChai B490BG four cylinder engine;
Full hydraulic transmission technology,simple structure and reliable performance;
Split flow of single pump for working hydraulic system, significant effect of energy conservation;
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
Load sensing fully hydraulic steering system, easy and flexible operation;
Safe and reliable single pipeline brake syesem; Caliper disc brakes.
Working device with automatically levelling ability at high position
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.

DLZ915 wheel loader technical specifications

项目 Item	参数 Specifications	项目 Item	参数 Specifications
额定铲斗容量 Bucket capacity	0.5 m3	最小转弯半径（后轮外侧） Min. turning radius (outside of rear wheel)	3600mm
额定载重量 Rated load	1000 kg	转向角度 Steering angle	左右各35º each direction
卸载高度 Dumping height	2420 mm	最小离地间隙 Min. ground clearance	230mm
卸料距离 Dumping reach	900 mm	轴距 Wheel bace	1820mm
动臂提升时间 Boom lifting time	4 S	轮距 Wheel tread	1400mm
三项和 Total cycling time	8 S	发动机型号 Engine model	B490G
最大行驶速度 Max. speed	16km/h	发动机功率 Rated power	32kW/2300rpm
最大掘起力 Max. breakout force	35 kN	轮胎规格 Tyre	8.25-16
最大牵引力 Max.drawing force	18 kN	外形尺寸（长宽高） Overall dimensions	496016202420mm
最大爬坡能力 Max. gradeability	28°	整机工作重量 Operating weight	2990kg
