DLZ920 wheel loader-Product-Wolwa Group Co., Ltd.

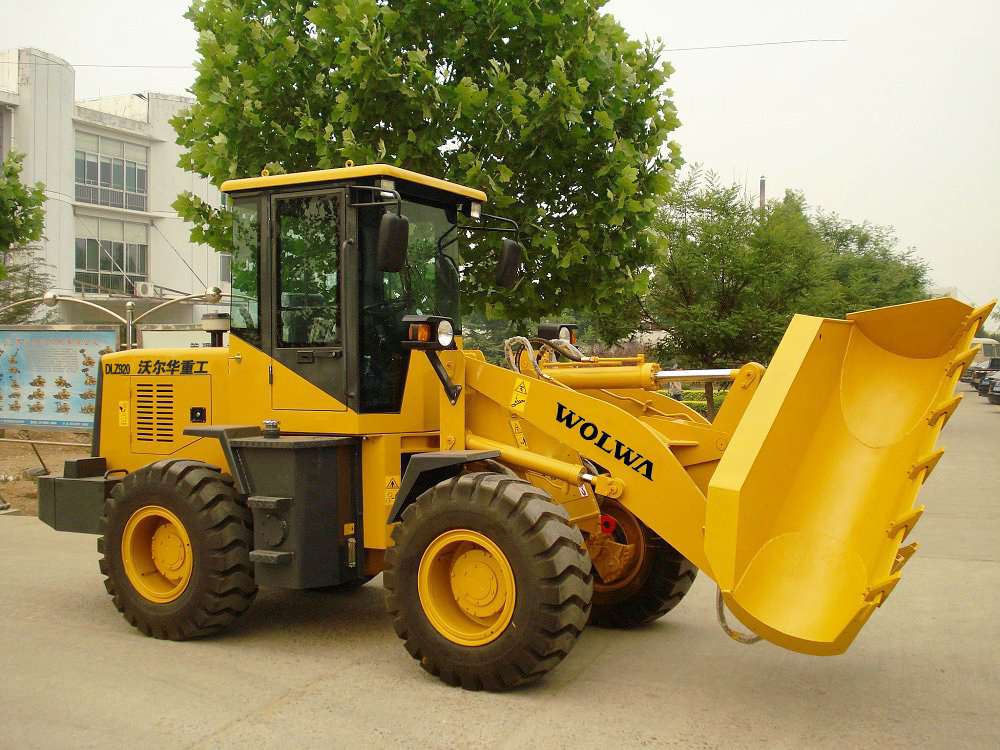

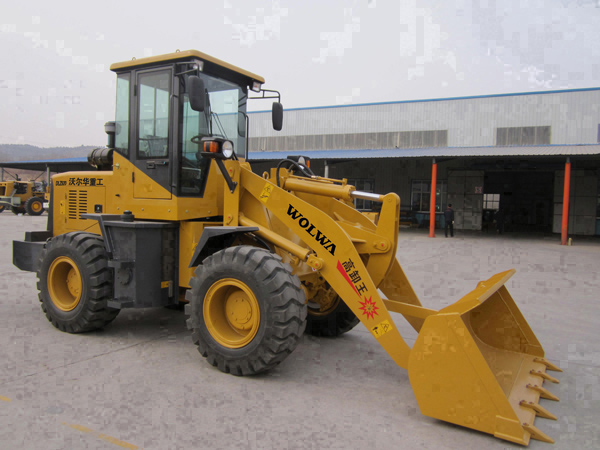

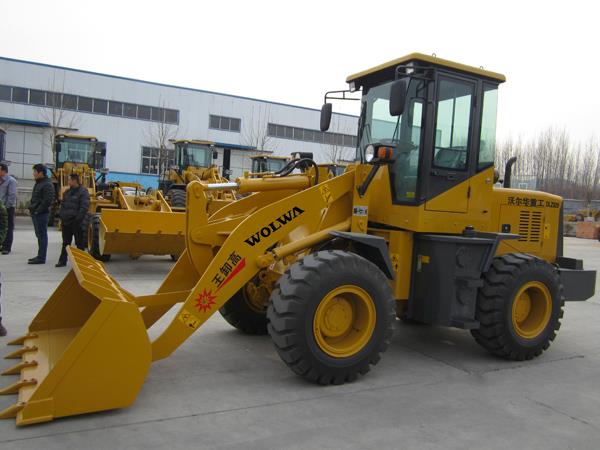

DLZ920 wheel loader

AdoptXin Chai four cylinder diesel engine. Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

DLZ920 wheel loader feature

AdoptXin Chai four cylinder diesel engine.
Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
Load sensing fully hydraulic steering system makes operation easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically levelling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.

DLZ920 wheel loader technical specifications

项目 Item	参数 Specifications	项目 Item	参数 Specifications
额定铲斗容量 Bucket capacity	0.9 m3	最小转弯半径（后轮外侧） Min. turning radius (outside of rear wheel)	4200mm
额定载重量 Rated load	1800 kg	转向角度 Steering angle	左右各35º
卸载高度 Dumping height	2750 mm	最小离地间隙 Min. ground clearance	330mm
卸料距离 Dumping reach	910 mm	轴距 Wheel base	2150mm
动臂提升时间 Boom lifting time	4.5 S	轮距 Tread	1480mm
三项和 Total cycling time	9 S	发动机型号 Engine model	Xin Chai 4105
最大行驶速度 Max. speed	25km/h	发动机功率 Rated power	50kW/2400rpm
最大掘起力 Max. breakout force	46 kN	轮胎规格 Tyre	16/70-20
最大牵引力 Max.drawing force	35 kN	外形尺寸（长宽高） Overall dimensions	552019502670mm
最大爬坡能力 Max. Gradeability	28°	整机工作重量 Operating weight	5300kg
