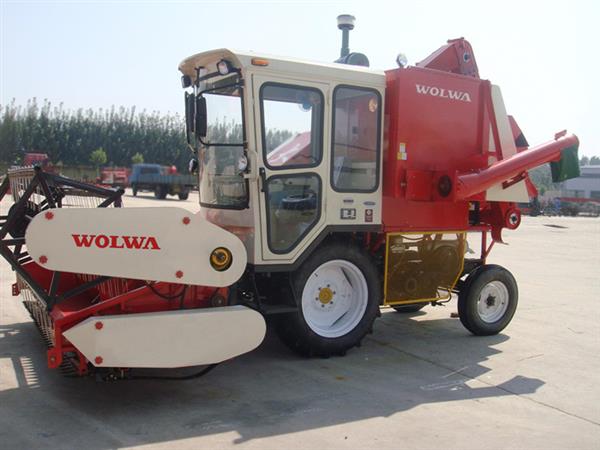

W4D-1 soybean harvester

1. Model: W4D-1.0 2. Required power (hp):65hp 3. Working width (mm): 2562mm

Please call：
+86-537-6588123

Specifications

1. Model: W4D-1.0
2. Required power (hp):65hp
3. Working width (mm): 2562mm

1. Use of automatic formed floating cutter to ensure lowest harvesting height.

2. Application of double rollers

3. Use of re-threshing device obtains low loss rate and high cleanliness

4. Short time in the machine and shorter threshing roller, increase the quality, color and luster.

5. Stem and skin collected separately,,more systematic

Technical specification sheet
Type			Wheel full feed self-propelled
Model			W4D-1.0
Cutting Width		mm	2562
Feed		Kg/s	0.5-1.0
Running speed		Km/h	2.48-16
Diesel Engine	Model		4102
	Power	KW	48
	Rotate Speed	r/min	2600
Average Oil Consumption per Hectare		Kg/hm²	≤19
Working Productivity		Hm²/h	5-10
Total Weight		kg	3050
Dimension (L×W×H)		mm	6210
			3180
			2930
Ground Clearance		mm	315
Header	Reel Type		Spring-tined
	Reel Diameter	Mm	Φ900
	Reel Bat	Piece	5
	Cross auger Type		Screw auger, eccentric extensible link
	Cross Auger Diameter	mm	Φ500
	Clearance between Auger and Bed Plate	mm	12-20
	Cutter bar Stroked	mm	76.2
	Cutter bar Type		Domestic standard II
Conveyer	Type		Flat belt raked tine, forced feed
Conveyer	Width	mm	500
Threshing Drum	Type		Axial flow rasp bar
	Diameter	mm	Φ480 adjustable
	Length	mm	1190
Concave	Type		Grid based
	Angle	(°)	212
	Separation Area	m²	0.96
Sieves	Type		Double sieves + fan + re-threshing
	above sieve	m²	0.56
	bottom sieve	m²	0.7
Fan	Type		Retroverted straight-blade centrifugal
Fan	Diameter	mm	Φ420
Grain Auger Diameter×Thread Pitch		mm	Φ125×115
Auger Diameter×Thread Pitch			Φ125×115
Unloading type			mechanical
Tank capacity		m3	0.75
