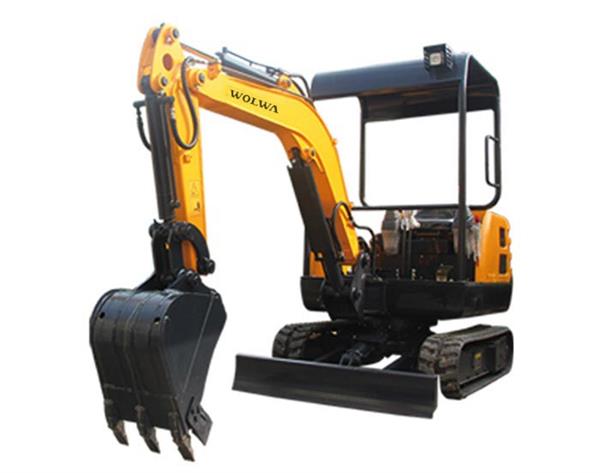

[New] 1.8 t crawler excavator

DLS818-9B mini crawler excavators are wolwa Group developed and manufactured for specific market a small excavator for rural replace human labor situation, the device uses domestic engine, mechanical manipulation, as well as optimized ergonomics patentability joystick, allow the driver to operate more convenient and comfortable.

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

DLS818-9B 1.8 t crawler excavator introduction

DLS818-9B 1.8 t crawler excavator features

1, portable operation, convenient operation means, in line with the new generation of ergonomic working environment.
2, equipped with full diesel engine with strong power, low noise, low emissions, low fuel consumption, easy maintenance and so on.
3, strengthen the track, effectively strengthening the track wear, while extending the life of the track,
4, hydraulic management rational layout, greatly facilitate the inspection and maintenance of hydraulic systems.
5, high-precision instrument, excavator intelligent monitoring housekeeper.

DLS818-9B 1.8 t crawler excavator performance parameters

性能参数 Specifications
铲斗容量(m³)	Standard Bucket Capacity	0.06
回转速度(rpm)	Swing Speed	10-12
最大爬坡角度（°）	Max.Grade Ability	35°
挖斗最大挖掘力（kN）	Max.Bucket Digging Force	14
小臂最大挖掘机力(kN)	Max.Arm Digging Force	10
发动机型号	Engine Model	KM385B
额定输出/转速(kw/rpm)	Rated Power Output/Revolution	18.1/2200
液压泵设定压力(MPa)	Set Pressure of Hydraulic Pump	16

作业范围 Working range
最大挖掘高度（mm）	MAX digging height	3365
最大卸载高度（mm）	MAX dumping height	2385
最大挖掘深度（mm）	MAX digging depth	2050
最大挖掘半径（mm）	MAX digging radius	3860
最小回转半径（mm）	MAX swing radius	1125
推土板抬起最大离地间隙（mm）	MAX dozer lifting height	230
推土板沉下最大深度（mm）	MAX dozer cutting depth	275
