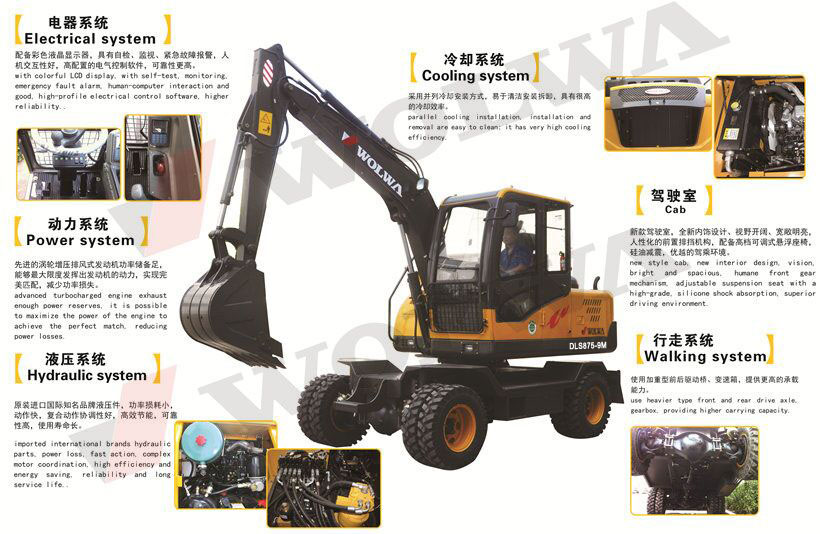

DLS875-9M wheel excavator excavator product feature

1.Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.

2.Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.
3.Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life.
4.Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity.
5.Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment.

6.Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.

DLS875-9M wheel excavator specification

model			unit	specification
machine weight			kg	6600
bucket capacity			m3	0.3
overall size	total length		mm	5940
	total width		mm	2050
	bob-weight clearance ground		mm	1023
	tail rotation radious		mm	1833
	tail length		mm	1833
	up height		mm	2000
	total height		mm	2827
	min clearance ground		mm	217
	tires distance		mm	1670
	wheelbase		mm	2400
				/
				/
	boom length		mm	3050
	arm length		mm	1750

			mm	/

specification	engine	model brand	/	Xinchai 4D32ZG31
		type	/	Array, four stroke,
				water cooling,
				direct injection, pressurization
		Bore * trip	mm	95/105
		The piston displacement	L	2.977
		rated power	kw/rpm	48/2300
		Maximum torque	N.m/rpm	245/1610
	hydraulic system	model hydraulic pump	gear pump *2	SGP1A23F2H9-
		model hydraulic pump	gear pump *2	L090C/R264C
		rated displacement	ml/r	23+23
		The forerunner of pump	Mpa	3
		main valve		8
		Pressure of work	MPa	20
		rated flow	L/min	105.8
		hydraulic oil tank	L	103
		Fuel tank capacity	L	125
	working system	Rotary speed	rpm	10
		work speed	km/h	35
		bucket digging force	kN	35
		bucket bar diggingforce	kN	28
		maximum pulling force	kN	39
		Grade ability	°	30
		Ground pressure	Kpa	/
		bulldozing (width*height)	mm	2024/440
	brake		/	break air
	brake system		/
working range	max mining distance		mm	6074
	The ground maximum effective mining range		mm	5878
	max digging depth		mm	3228
			mm	/
			mm	/
	max digging height		mm	6202
	max unloading height		mm	4533
	The minimum turning radius		mm	2361
