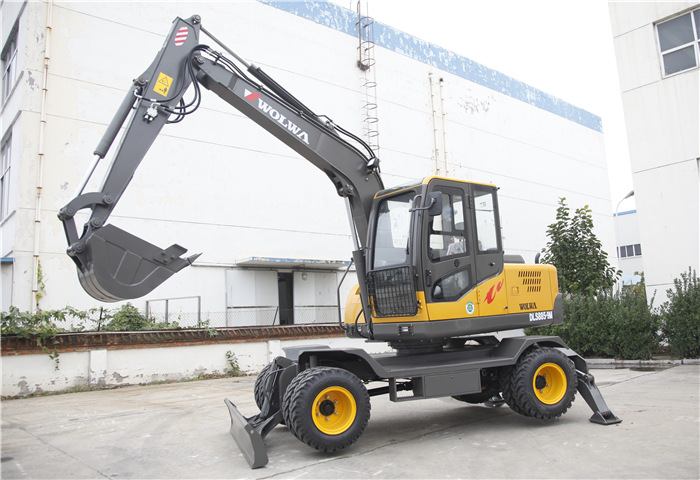

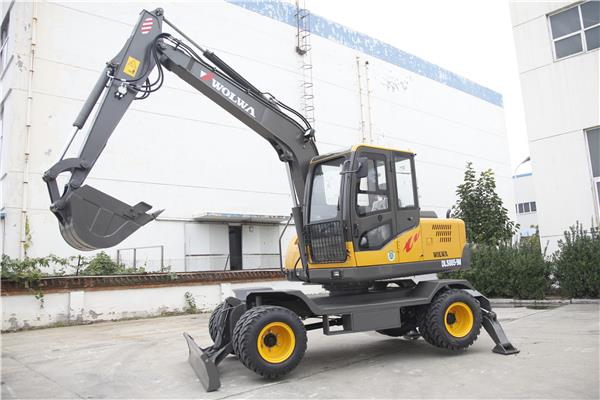

DLS885-9M wheel excavator excavator product feature

1.Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.

2.Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.
3.Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life.
4.Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity.
5.Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment.

6.Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.

DLS885-9M wheel excavator specification

项目 Item			单位 unit	数据 specification
整机重量 machine weight			kg	8000
铲斗容量 bucket capacity			m³	0.3
外形尺寸overall size	履带接地长度 Length of track on ground		mm	/
	履带长度 Track length		mm	/
	配重离地间隙 bob-weight clearance ground		mm	1035
	尾部回转半径 tail rotation radious		mm	1833
	尾部长度 tail length		mm	2057
	上部宽度 up height		mm	2060
	总高度（驾驶室顶） total height (top of cabin )		mm	2835
	最小离地间隙 min clearance ground		mm	318
	轮胎距离 tires distance		mm	1678
	车轮轴距 wheelbase		mm	2600
	上部轨轮 upper rail wheel		个	/
	下部轨轮 lower rail wheel		个	/
	动臂长度 boom length		mm	3500
	斗杆长度 arm length		mm	2000
	总长 total length		mm	6442
	履带板宽度 Track width		mm	/
	总宽度 total width		mm	2150
整机性能参数 specification	发动机 engine	型号（品牌） model brand	/	4D32ZG31
		形式 type	/	水冷/增压 water cooling/pressurize
		缸径行程 Bore trip	mm	￠98/105
		活塞排量 The piston displacement	L	3.168
		额定功率 rated power	kw/rpm	55KW/2500rpm
		最大扭矩 Maximum torque	N.m/rpm	250/1800
	液压系统 hydraulic system	型号(液压泵) model hydraulic pump	齿轮泵2 gear pump 2	SGP1A27A2H9-岛津 SGP1A27A2H9-Shimadzu
		额定排量 rated displacement	ml/r	27+27
		先导压力 The forerunner of pump	Mpa	3.5
		主阀 main valve	/	派克 Parker
		工作压力 Pressure of work	MPa	20
		额定流量 rated flow	L/min	135
		液压油箱 hydraulic oil tank	L	116
		燃油箱容量 Fuel tank capacity	L	138
	作业系统 working system	回转速度 Rotary speed	rpm	10
		行走速度 work speed	km/h	0～35
		铲斗挖掘力 bucket digging force	kN	41.4
		斗杆挖掘力 arm digging force	kN	31
		最大牵引力 Maximum traction	kN	47
		爬坡能力 Climbing ability	°	30
		接地比压 Ground pressure	Kpa	/
		推土板（宽高） dump blade (widthheight)	mm	2140/310
	驻车制动 brake		/	断气刹 automatically air-cut brake
	行车系统 brake system		/	气刹 Air brake
工作范围working range	最大挖掘距离 max digging distance		mm	6563
	地面最大有效挖掘距离 The ground maximum effective mining range		mm	6588
	最大挖掘深度 max digging depth		mm	4660
	8英尺水平开挖的最大挖掘深度 The maximum excavation depth of horizontal excavation 8 foot		mm	/
	最大垂直挖掘深度 Maximum vertical excavation depth		mm	4488
	最大挖掘高度max digging height		mm	6680
	最大卸载高度max dumping height		mm	4998
	最小回转半径The minimum radius of gyration		mm	2467
