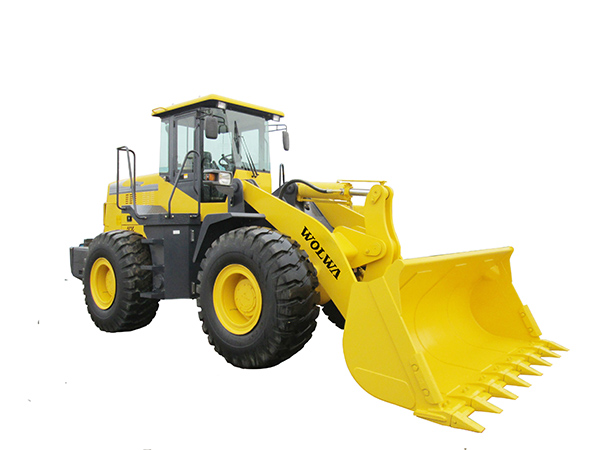

Wolwa CL935 wheeled loader

low noise, luxurious interior cab,convenient operation

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

Product introduction:

The whole machine adopts yuchai machine co., LTD., the engine; Driving system consists of four component torque converter, planet type single-stage power shift transmission, four-wheel drive axles; Work device adopts single rocker "Z" form linkage mechanism, flexible shaft control; Steering system USES articulated frame, hydraulic steering gear; With gas cap oil caliper disc brake system vehicle braking and parking brake hoof type. The cab can be optional heater.

Product parameter

Bucket Volume(CBM)	≥1.7
Rated weight(kg)	3000
working weight(kg)	9800
total length(mm)	7000
total width(mm)	2440
total height(mm)	3010
axle base(mm)	2600
wheel base(mm)	1800
ground clearance(mm)	340
departure angle	29.5
body turning angle	≥35
unloading height	3100
unloading distance	1270
after suspention length	1740
distance from rear axle to panel point	1675
Ground position collecting bucket angle	45
delivery bucket angle	47
turning radius(mm)	5240
gradeability	29.5º
Max.traction force	85
tilting capacity	≥51
Max.digging force	≥95
