GN850 skip steer loader with high speed , save operateion time.place sliding steering,small steering radius.Easy to operate,Very suitable for port clearance, clear sand, clear powder,civicism , highway maintenance and so on.The loader is multiple use,you can loading,digging, furrowing, milling planer, push the snow, bulldozing, fork, cleaning, hole, broken, wood and other functions with different tools.Mainly used in narrow space,Job content change frequent occasions,At the same time for large engineering machinery construction machinery ancillary equipment used.Especially suitable for such as urban infrastructure, roads or construction sites, workshop, warehouse, dock, the ship deck cabin even narrow space in the homework.And for large engineering machinery logistics, land clearing and th
GN850 skip steer loader with high speed , save operation time.place sliding steering,small steering radius.Easy to operate,Very suitable for port clearance, clear sand, clear powder,civicism , highway maintenance and so on.The loader is multiple use,you can loading,digging, furrowing, milling planer, push the snow, bulldozing, fork, cleaning, hole, broken, wood and other functions with different tools.Mainly used in narrow space,Job content change frequent occasions,At the same time for large engineering machinery construction machinery ancillary equipment used.Especially suitable for such as urban infrastructure, roads or construction sites, workshop, warehouse, dock, the ship deck cabin even narrow space in the homework.And for large engineering machinery logistics, land clearing and the project finish Such as homework.
(1)Tiny body. Height is only 1.48 meters, can enter various low environment
(2)Powerful, 45 kw engine, can meet various requirements
(3)Multi-function. Can replace a variety of professional job attachment, realize shovel, forklift, cleaning, and in addition to the snow and ice, and other operations
(4)High efficiency and in situ 360 ° steering. Artificial 20-30 people per hour deoxidization efficiency 4 hours work
(5)Good cost performance and quick return of investment. Every day, save the labor cost is about 2000 yuan
(6)Three years service after sale , regular tracking service, lifelong maintenance, service guaranteed
|

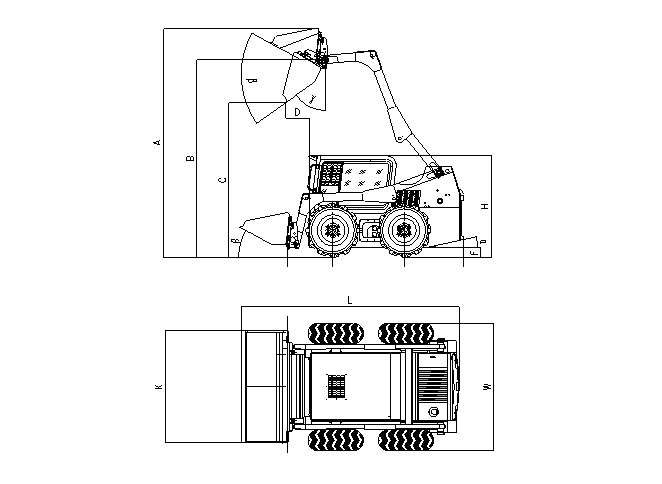

Max working height(A) |
3660mm |
144.1inch |
|
Max pin height(B) |
2840mm |
111.8inch |
|
Max dumping height(C) |
2220mm |
86.6inch |
|
Max Dumping distance(D) |
300mm |
11.8inch |
|
Max Dumping Angle |
39o |
|
|
Rollback of bucket on ground(θ) |
|
|
|
Departure angle(α) |
|
|
|
Total height(H) |
1482 mm |
58.3inch |
|
Ground clearance(F) |
135mm |
5.3nch |
|
Wheel base(G) |
1044mm |
41.1inch |
|
Overall length without bucket(J) |
2600 mm |
102.4inch |
|
Total width(W) |
1678mm |
66.1inch |
|
Tread width(centerline to centerline) |
1394 mm |
54.9inch |
|
Bucket width(K) |
1720 mm |
67.7inch |
|
Total length(L) |
3300 mm |
129.9inch |
Technical Parameter:
|
MODEL |
GN850 |
||||
|
Engine |
Rated power KW |
45 |
|||
|
Rated speed rpm |
2500 |
||||
|
Noise |
Inside of cab |
≤92 |
|||
|
Outside of cab |
106 |
||||
|
Hydraulic system |
Hydraulic pressure |
14.2MPa |
|||
|
Cycle time (s) |
Raise |
dump |
Lower |
||
|
5.56 |
2.16 |
5.03 |
|||
|
|
Operating load(kg) |
850(Kg) |
1874lb |
||
|
|
Bucket capacity(m3) |
0.39(m3) |
17.3(ft 3) |
||
|
|
Tipping load |
1534(Kg) |
3374.8lb |
||
|
|
Bucket Break-out force |
1380(Kg) |
3036lb |
||
|
|
Max Lifting Force |
1934(Kg) |
4254.8lb |
||
|
|
Operating weight |
2840(Kg) |
6248lb |
||
|
|
Speed (km/h) |
0~9.6 (km/h) |
0~6(mile/h) |
||
|
Tire |
10.0-16.5 |
||||
