Small skid loader GN380 introduction：

Small loader GN380 is a mechanical equipment with many uses. The fuselage is narrow, easy handling, can easily and quickly stogether to hook up a variety of different functions to realize all kinds of work widely used in park, courtyard, lawn, garden or any other place in the environment.

Product feature：

1, Small skid loader GN380 easy to operate

Double handle finish walking, lift and skip movements

Piston motor smoothly

Four-wheel drive adapt to various environment

Many forms of pedals, let the operation safer and more convenient

Both servo and standard operation mode

2, Small skid loader GN380 easy maintenance

Oil mouth in car in vitro, convenient to replace air filter, oil, filter, spark plug

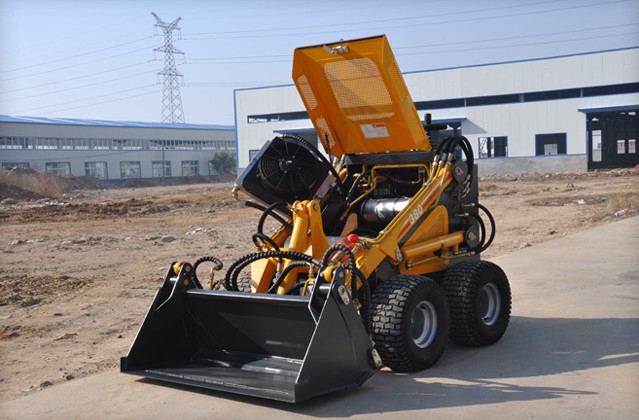

The guard plate is convenient, the cover can be opened

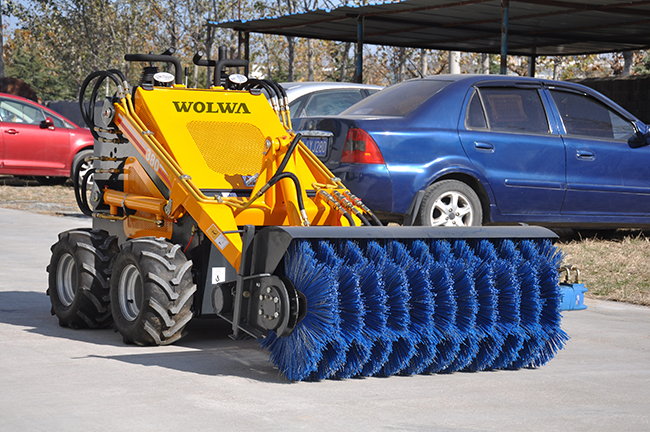

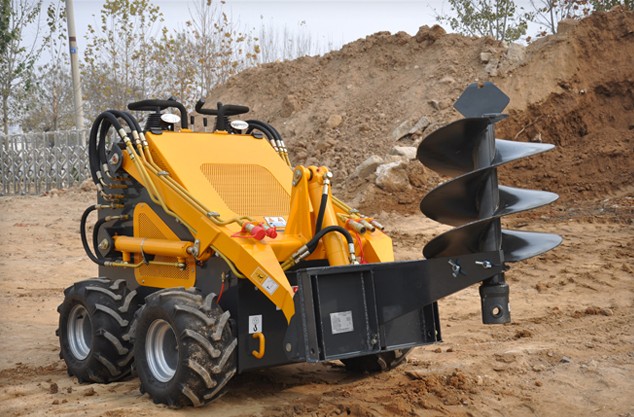

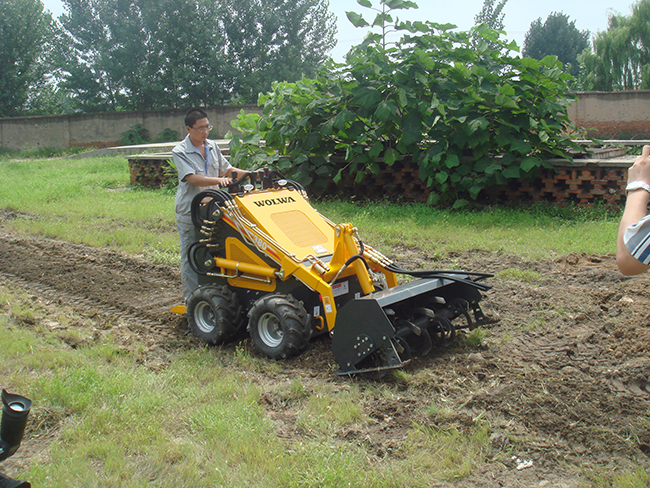

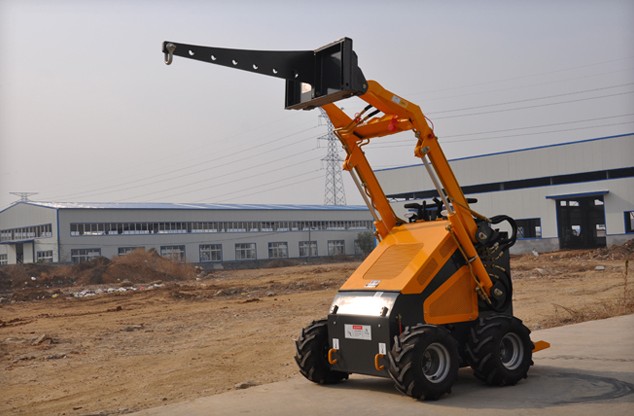

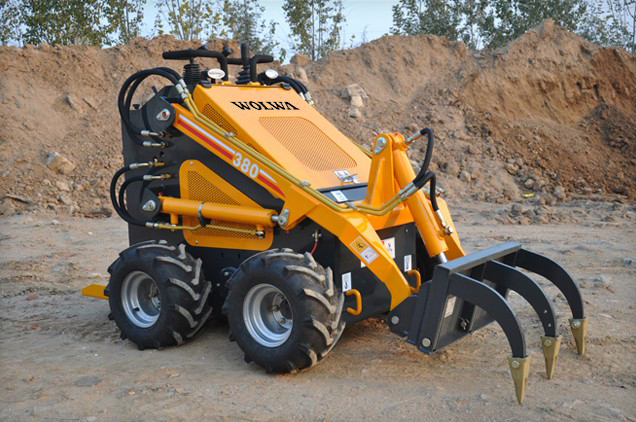

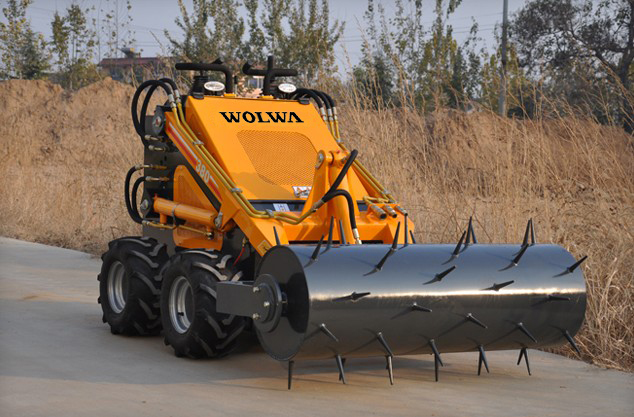

3, Small skid loader GN380 can be configurated with variety of affix, and is interchangeable between each model.

4, International famous brand engine, stable and reliable.

5, small skid loader GN380 many kinds of tires and the track model chosen, more resilient.

6, GN380 mini loader is more narrow, only 800 mm wide. Can through narrow places, and have big fuel tank and the lifting force.

7, Small skid loader can do much simplified manual labor, improve efficiency

8, Compared with similar products, have a higher lifting height

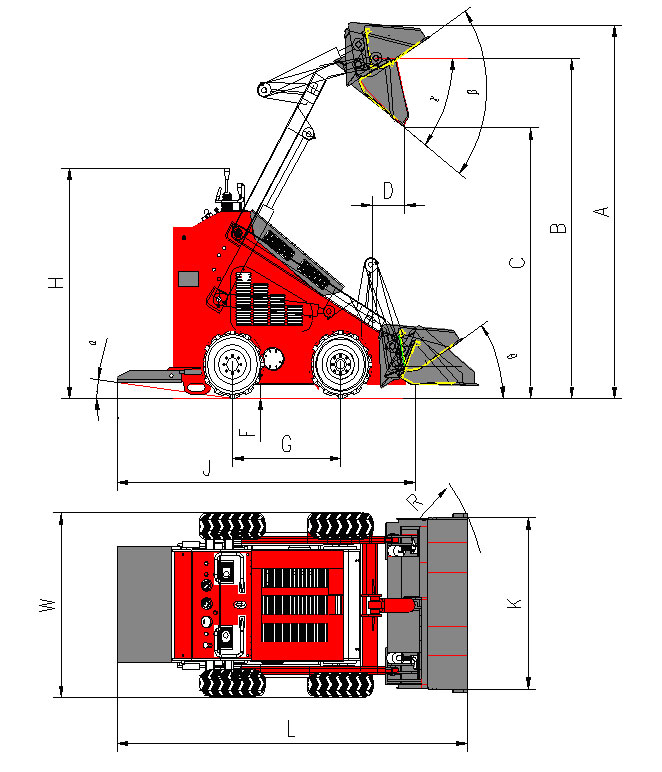

Small skid loader GN380 parameter：

item	GN380
item	crawler type	with solid tire	with ordinary tire	with widen tire	people type tire
Max.working height（A）	2128 mm	2115 mm	2155 mm	2155 mm	2143 mm
Max.pin height（B）	1869 mm	1856 mm	1896 mm	1896 mm	1884 mm
Max.discharge height（C）	1473 mm	1460 mm	1500 mm	1500 mm	1488 mm
Top dicharge distance（D）	399 mm	388 mm	348 mm	348 mm	348 mm
bucket angle（β）	55°	55°	55°	55°	55°
bucket discharge angle（γ）	30°	30°	30°	30°	30°
collecting bucket angle（θ）	25°	25°	25°	25°	25°
departure angle（α）	10°	8°	12°	12°	11°
total height（H）	1218 mm	1205 mm	1245 mm	1245 mm	1233 mm
ground clearance（F）	105mm	90 mm	130 mm	130 mm	118 mm
axle base（G）	612mm	636 mm	636 mm	636 mm	636 mm
leight without bucket（J）	1752 mm	1752 mm	1752 mm	1752 mm	1752 mm
toal width（W）	1060 mm	1033 mm	1033 mm	1183 mm	1160 mm
bucket width（K）	980 mm	980 mm	980 mm	980 mm	980 mm
total length（L）（with bucket）	2206 mm	2206 mm	2206 mm	2206 mm	2206 mm
frount turn radiusR	1317 mm	1307 mm	1307 mm	1307 mm	1307 mm

item			GN380
engine	rated power（KW）		15.435KW(21HP)
	turn speed（rpm）		3600
noise（Db）			≤95
hdraulic system	system pressure（Mpa）		17
	working hour（s）		lift	turn	down
			4.27	1.34	3.31
parameter			metric
	loading weight		200 Kg
	bucket Vol.		0.15 m³
	max.pulling force		375 Kg
	speed		0-5.5 Km/h
	operating weight	with solid tire	940 Kg
		with ordinary tire	886 Kg
		with widen tire	850 Kg
		crawler type	1068kg
		with construction tire	890kg
tire model	solid tire		16×6-8
	ordinary tire		5.00-8
	widen tire		KT-302 18*9.5-8 6P/TL
	people shape tire		18*6.5-8
tire	solid tire		4.33R-8
	ordinary tire		3.50D
	widen tire		8*6.5
