Electric forklift battery is the source power,Drive motor and hydraulic system,To realize the driving and handling operation.From the overall,Electric lift trucks in the durability, reliability and applicability have been significantly improved,Can completely forklift compete with internal combustion engine
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no pollution, easy operation, energy efficient。The operator's work intensity is much lighter than internal-combustion forklift，The electric steering system，Speed control system，hydraulic control system，braking systems Are controlled by electrical signals，Greatly reduces the labor intensity of operators，So this supply big help to improve its efficiency and the accuracy of work .
•Performance of low speed high torque dc series hoisting motor.
•The performance of dc motor at low speed and low noise of gear pump,Cancel the steering motor and oil pump,To achieve single pump bypass,Lowering the hoisting and in the form of noise of the vehicle.
•Advanced and reliable electric control system,High efficiency and low fever, little noise,With thermal protection and thermal compensation, overvoltage, undervoltage protection.
•In addition to the electronic control system protection function,The vehicle also has the operating sequence protection,Seat power-off protection,Brake to keep driving, and other functions.
•User-friendly interactive multifunction meter,Appearance is beautiful,Can accurately display battery power, working time, fault code, etc
|
characteristics |
Model |

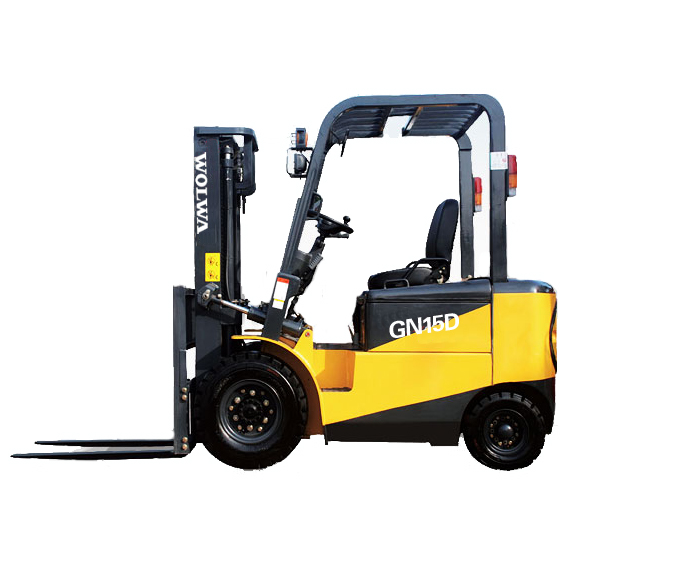

GN15D |
UNIT |
|
|
Capacity |
1500 |
kg |
||
|
Load center |
500 |
mm |
||
|
Power type |
Battery |
|||
|
Dimensions |
Total length (with/without fork) |
3137/2217 |
mm |
|
|
Total width |
1100 |
mm |
||
|
Total height |
2090 |
mm |
||
|
Mast height |
2010 |
mm |
||
|
Max. height |
4020 |
mm |
||
|
Lift height |
3000 |
mm |
||
|
Free lift height |
130 |
mm |
||
|
Ground clearance |
125 |
mm |
||
|
Wheel & tire |
Front overhang |
442 |
mm |
|
|
Wheel base |
1380 |
mm |
||
|
Rear overhang |
400 |
mm |
||
|
Fork adjustment |
245/920 |
mm |
||
|
Front tread |
890 |
mm |
||
|
Rear tread |
920 |
mm |
||
|
Performance |
Min. turning radius |
1900 |
mm |
|
|
Mast tilting angle |
6/12 |
o |
||
|
Battery(voltage/capacity) |
48/440 |
V/Ah |
||
|
Travel speed(with/without load) |
11/13 |
Km/h |
||
|
Lift speed (with load) |
300 |
mm/sec |
||
|
Max. gradeability |
15 |
% |
||
|
Battery weight |
752 |
kg |
||
|
Tire |
Front |
6.50-10NHS |
||
|
Rear |
5.00-8-8PR |
|||
|
Service weight |
3280 |
kg |
||
