Electric forklift battery is the source power,Drive motor and hydraulic system,To realize the driving and handling operation.From the overall,Electric lift trucks in the durability, reliability and applicability have been significantly improved,Can completely forklift compete with internal combustion engine
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no pollution, easy operation, energy efficient。The operator's work intensity is much lighter than internal-combustion forklift，The electric steering system，Speed control system，hydraulic control system，braking systems Are controlled by electrical signals，Greatly reduces the labor intensity of operators，So this supply big help to improve its efficiency and the accuracy of work .
• Reliable performance of the ac motor and ac pump motor, no carbon brush and free maintenance
• CAN bus technology, reduce the wiring, the reliability of communication signal transmission
• Regenerative recovery system, environmental protection and energy saving.
• horizontally drive motor, storage battery sink to the bottom frame, stability is good
• Using the large capacity battery, work longer hours
|
|
Model |

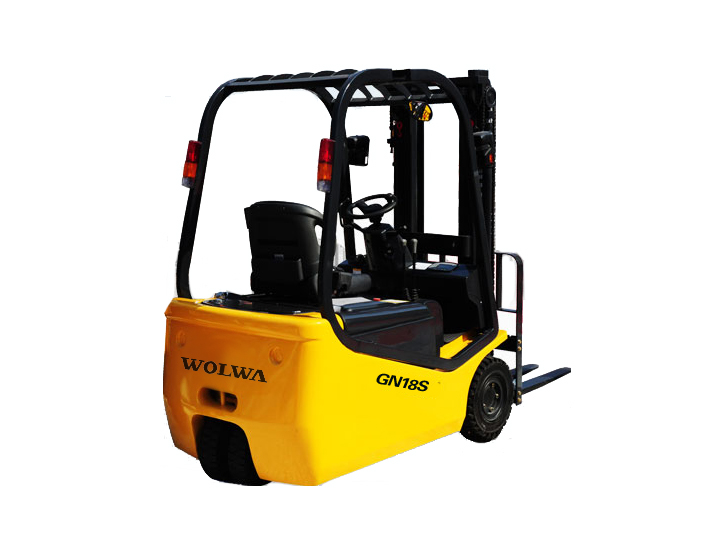

GN18S |
|
||
|
Rated load |
1800 |
Kg |
|||
|
Load center |
500 |
mm |
|||
|
Type |
Battery |
|
|||
|
Dimensions |
Lifting height |
3000 |
mm |
||
|
Mast tilt F/R |
6/12 |
deg |
|||
|
Dimension |
Total length |
3137 |
mm |
||
|
Total width |
1100 |
mm |
|||
|
Total height |
2090 |
mm |
|||
|
Min. turning radius |
1900 |
mm |
|||
|
Performance |
Max. travel speed (full load/idle load) |
12/13 |
Km/h |
||
|
Max. lifting speed (full load/idle load) |
280/430 |
Km/h |
|||
|
Max. gradeability |
15 |
% |
|||
|
Machine weight |
3430 |
kg |
|||
|
Chassis |
Tyre |
Front wheel |
6.50-10NHS |
|
|
|
Rear wheel |
5.00-8-8PR |
|
|||
|
Axle base |
1380 |
mm |
|||
|
Battery |
Voltage/capacity |
48/440 |
V/Ah |
||
|
Electric motor and control |
Power of drive motor |
7.5(AC) |
Kw |
||
|
Power of pump motor |
9.2(AC) |
Kw |
|||
|
Control mode |
MOS tube |
Kw/rpm |
|||
