2.0T Diesel forklift GN20-Product-Wolwa Group Co., Ltd.

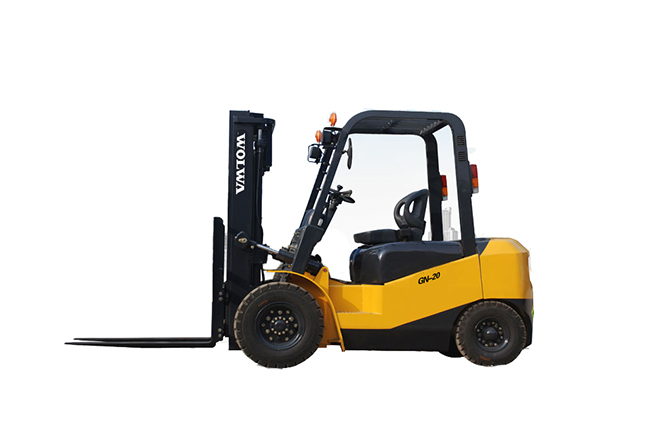

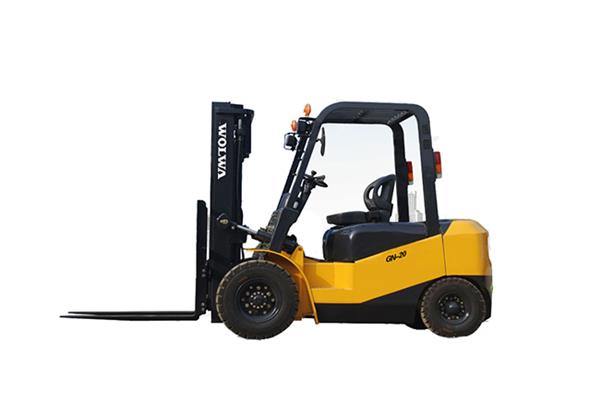

2.0T Diesel forklift GN20

Forklift truck is now one of commonly used carrying vehicles, is into a pallet for loading and unloading, stacking and short-distance transport various wheeled transport vehicles, heavy handling operations.

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

Diesel forklift GN20 Introduction

Forklift is a transportation vehicle,used for loading and unloading、short distance transport、heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.

Diesel forklift GN20 performance feature

•The circular arc design,Streamline modelling,elegant appearance,exquisite workmanship。
•wide vision door frame,operator can see more clearly. 。
•Steering axle damping technology。
•Air suction located above canopy guard frame pillar,keep the engine out of dust , dynamic performance is mroe excellent。
•Hood built-in insulation sound-absorbing material,pro-environment、denoise、Make your work more comfortable。。
•Small dashboard and steering column combined，reasonably structured，Professional and reliable instrument，show your working condition any time.。
•A variety of dynamic choice,Rich supporting tools,Larger choice space for you。
•easy operation ,safe reliable , will make your job easier.。

Diesel forklift GN20 technical parameters

summary	type		GN20	单位
	rated load		2000	Kg
	load centre distance		500	mm
	Engine type		柴油
measure	lift height		3000	mm
	mast tilt angle (font/back)		6/12	deg
	boundary dimension	length	3600	mm
		width	1160	mm
		height	2070	mm
	minimum turning radius		2170	mm
property	Max. Speed (full load/empty)		19/20	Km/h
	Maximum lifting speed (full load)		420	mm/sec
	maximum gradability		20	%
	self weight		3500	kg
underpan	tyre	front wheel	7.00-12-12pr
	tyre	rear-wheel	6.00-9-10pr
	distance between shafts		1600	mm
unit power	Engine	adaptable automobile mode	GN20
		type	C490BPG
		rated power	37/2650	Kw/rpm
