3.8T Diesel forklift GN38

Forklift truck is now one of commonly used carrying vehicles, is into a pallet for loading and unloading, stacking and short-distance transport various wheeled transport vehicles, heavy handling operations.

Please call:
+86-537-6588123

Diesel forklift GN38  Introduction

Forklift is a transportation vehicle,used for loading and unloading、short distance transport、heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.

Diesel forklift GN38 Performance feature

Ergonomic design :GN38 series forklift with built-in oblique  oil cylinders,High-grade adjustable damping  seat,Maximum reduces operator fatigue,wide vision door frame provide wide operation vision.

Damping design:Adopted floating roof rack,Steering axle damping technology,Make the vibration decreased by about 30% when it is wolking,improve operation comfort of the driver.

Strong driving part:High quality match the driving part and the hydraulic system,To make the vehicle efficiency more energy efficient.

Electric System: Using intelligent electronic monitoring combination instrument,liquid crystal display,With high reliability,electrical systems use waterproof seal plugin structure,Improve the safety and reliability.

Diesel forklift GN38 technical parameters



summary

type

GN38

unit

rated load

3800

Kg

load centre distance

500

mm

Engine type

diesel oil


measure

lift height

3000

mm

mast tilt angle (font/back)

6/12

deg

boundary dimension

length

3829

mm

width

1260

mm

height

2070

mm

minimum turning radius

2200

mm

property

Max. Speed
(full load/empty)

19/20

Km/h

Maximum lifting speed
(full load)

420

mm/sec

maximum gradability

20

%

self weight

4680

kg

underpan

tyre

front wheel

28×9-15-14PR


rear-wheel

6.50-10-10PR


distance between shafts

1700

mm

unit power

Engine

adaptable automobile mode

GN38/GN38T


type

490BPG  495BPG


 rated power

37/2650 42/2650

Kw/rpm

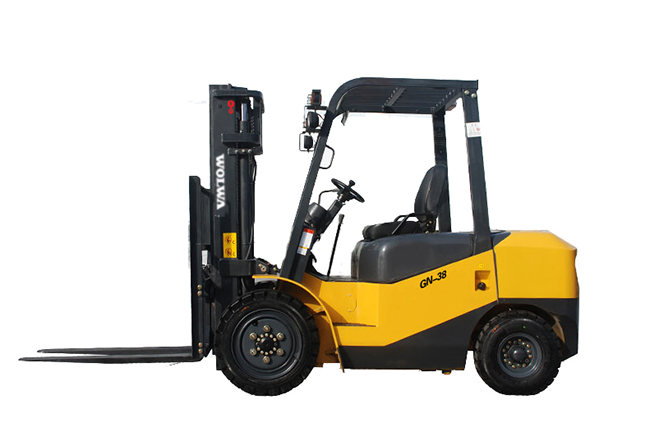

Diesel forklift GN38 product picture

3.8T Diesel forklift GN38 picture
