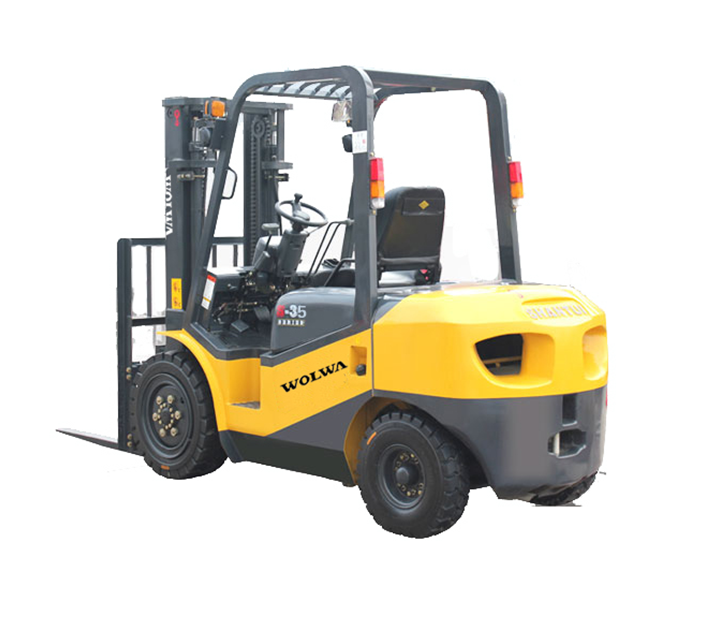

3.5T Diesel forklift S-GN35

Forklift truck is now one of commonly used carrying vehicles, is into a pallet for loading and unloading, stacking and short-distance transport various wheeled transport vehicles, heavy handling operations.

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

Diesel forklift S-GN35 Instroduction

Forklift is a transportation vehicle,used for loading and unloading、short distance transport、heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110, used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport, factory, warehouse, etc, is efficient equipment mechanical for loading and unloading, stacking and short distance transport.

Diesel forklift S-GN35 performance feature

ergonomic design: GN30series forklift with built-in tilt cylinder, High-grade adjustable damping seat to reduce operator’s fatigue,broad vision from it’s door frame.
High strength protect design: wide field of view and high strength protective top frame, maximize protect the safety of the operator.All bolts in the vehicle are high strength bolts of grade 10.9，Improved component impact, anti distortion ability。
Strong driving part: High quality match the driving part and the hydraulic system, which make the whole car more efficient energy saving efficiency.
Electric system: Intelligent electronic monitoring combination instrument,LED screen, high reliability, Electrical system adopts the waterproof sealing plug structure, improve the safety and reliability

Diesel forklift S-GN35 technical parameters

summary	type		S-GN35/35T	unit
	rated load		3500	Kg
	load centre distance		500	mm
	Engine type		Diesel oil
measure	lift height		3000	mm
	mast tilt angle (font/back)		6/12	deg
	boundary dimension	length	3829	mm
		width	1226	mm
		height	2140	mm
	minimum turning radius		2450	mm
property	Max. Speed (full load/empty)		20/20	Km/h
	Maximum lifting speed (full load)		420	mm/sec
	maximum gradability		20	%
	self weight		4350	kg
underpan	tyre	front wheel	28*9-15-14PR
	tyre	rear-wheel	6.5-10-10PR
	distance between shafts		1000	mm
unit power	Engine	adaptable automobile mode	S-GN35/35T
		type	495BPG
		rated power	40/2650	Kw/rpm
