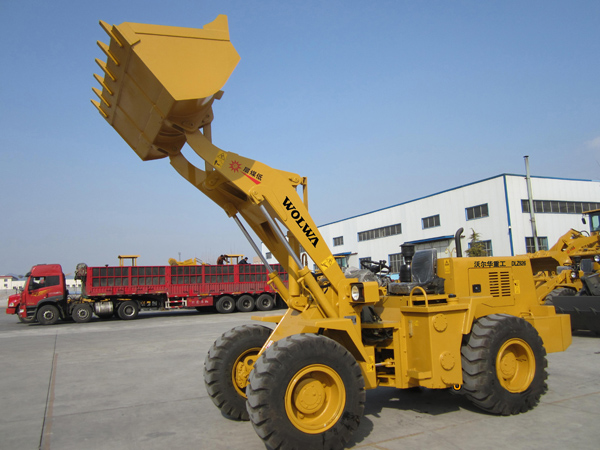

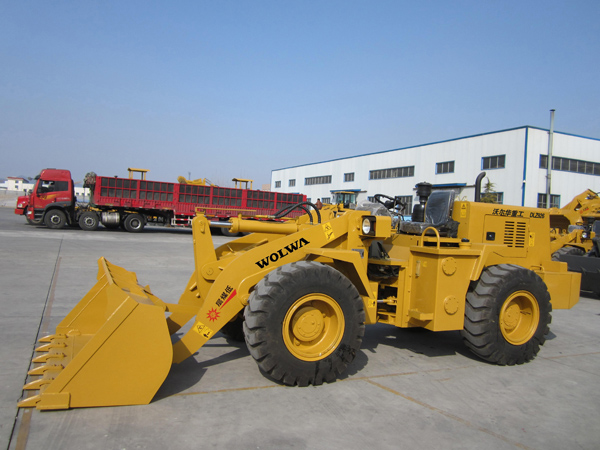

DLZ926 low wheel loader

YTO diesel engine is adopted, with strong power. Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

DLZ926 low wheel loader feature

YTO diesel engine is adopted, with strong power.
Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
Load sensing fully hydraulic steering system makes operation easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically levelling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.

DLZ926 low wheel loader technical specifications

项目 Item	参数 Specifications	项目 Item	参数 Specifications
额定铲斗容量 Bucket capacity	1.1m3	最小转弯半径（后轮外侧） Min. turning radius (outside of rear wheels)	4600mm
额定载重量 Rated load	2000Kg	转向角度 steering angle	左右35°
卸载高度 Dumping height	2230mm	最小离地间隙 Min. ground clearance	320mm
卸料距离 Dumping reach	920mm	轴距 Wheel base	2350mm
动臂提升时间 Boom lifting time	5S	轮距 Tread	1500mm
三项和 Total cycling time	9S	发动机型号 Engine model	LR4018G
最大行驶速度 Max. speed	25Km/h	发动机功率 Rated power	60KW/2400rpm
最大掘起力 Max. breakout force	55KN	轮胎规格 Tyre	16/70-20
最大牵引力 Max.drawing force	45KN	外形尺寸（长宽高） Overall dimensions	5760×2060×1950
最大爬坡能力 Max. Gradeability	30°	整机工作重量 Operating weight	5800Kg
