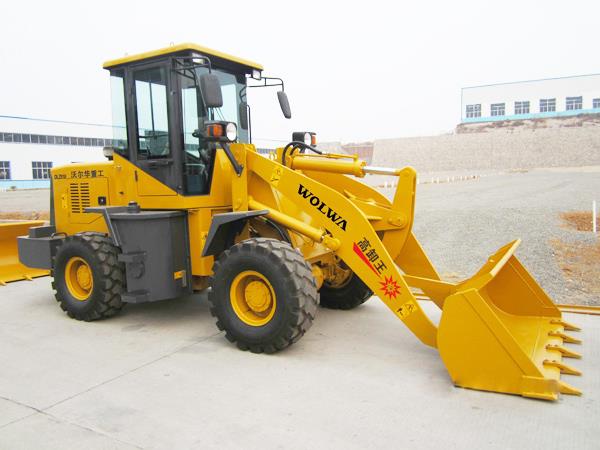

DLZ918 wheel loader

Adopt Chang Chai four cylinder diesel engine. Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

DLZ918 wheel loader feature

Adopt Chang Chai four cylinder diesel engine.

Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

Load sensing fully hydraulic steering system makes operation easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically levelling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.

DLZ918 wheel loader technical specifications

项目 Item	参数 Specifications	项目 Item	参数 Specifications
额定铲斗容量 Bucket capacity	0.75m3	最小转弯半径（后轮外侧） Min. turning radius (outside of rear wheel)	4200mm
额定载重量 Rated load	1500kg	转向角度 Steering angle	35°
卸载高度 Dumping height	2700mm	最小离地间隙 Min. ground clearance	250mm
卸料距离 Dumping reach	860mm	轴距 Wheel base	2150mm
动臂提升时间 Boom lifting time	4.5s	轮距 Tread	1400mm
最大行驶速度 Max. speed	19km/h	发动机功率 Rated power	38kW/2400r/min
最大掘起力 Max. breakout force	45kN	轮胎规格 Tyre	16/70-16
最大牵引力 Max.drawing force	33kN	外形尺寸（长宽高） Overall dimensions	552018002650
最大爬坡能力 Max. Gradeability	28°	整机工作重量 Operating weight	4500kg
