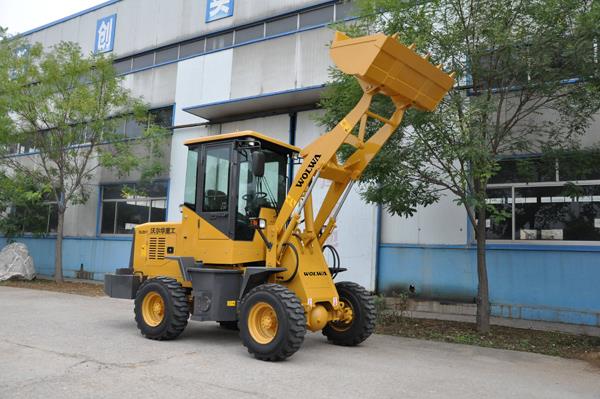

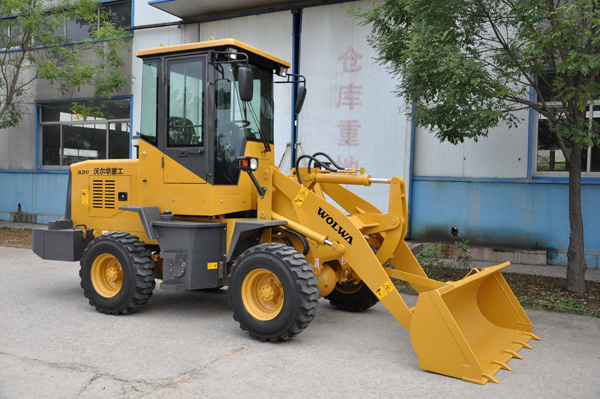

DLZ917 wheel loader feature

Adopt XinChai four cylinder engine;
Full hydraulic transmission technology,simple structure and reliable performance;
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
Split flow of single pump for working hydraulic system, significant effect of energy conservation;
Load sensing fully hydraulic steering system, easy and flexible operation;
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically levelling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin

DLZ917 wheel loader technical specifications

项目 Item	参数 Specifications	项目 Item	参数 Specifications
额定铲斗容量 Bucket capacity	0.5m3	最小转弯半径（后轮外侧） Min. turning radius (outside of rear wheel)	5000mm
额定载重量 Rated load	1000kg	转向角度 Steering angle	35°
卸载高度 Dumping height	2650mm	最小离地间隙 Min. ground clearance	250mm
卸料距离 Dumping reach	855mm	轴距 Wheel bace	1900mm
动臂提升时间 Boom lifting time	3.6s	轮距 Wheel tread	1400mm
最大行驶速度 Max. speed	17km/h	发动机功率 Rated power	36.8kW/2400r/min
最大掘起力 Max. breakout force	34kN	轮胎规格 Tyre	12-16.5
最大牵引力 Max.drawing force	30kN	外形尺寸（长宽高） Overall dimensions	529016802680
最大爬坡能力 Max. gradeability	25°	整机工作重量 Operating weight	3700kg
