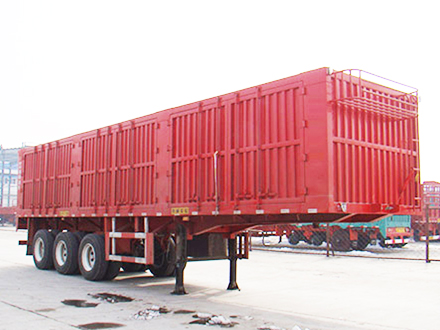

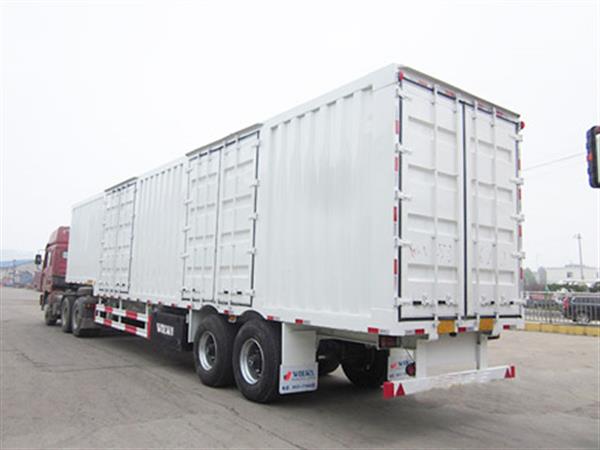

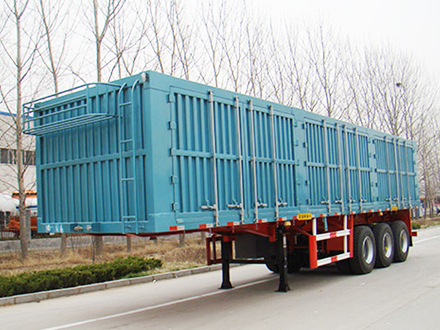

Box semi trailer

This series of box semi trailer is mainly used to transport home appliances, textiles, coals, sands, and other building materials as well as goods that can be carried by pallets. Van trailer with a length more than 16m is often used to transfer goods between two inland countries.

Please call:
+86-537-6588123

Tare Weight

About 8.3T

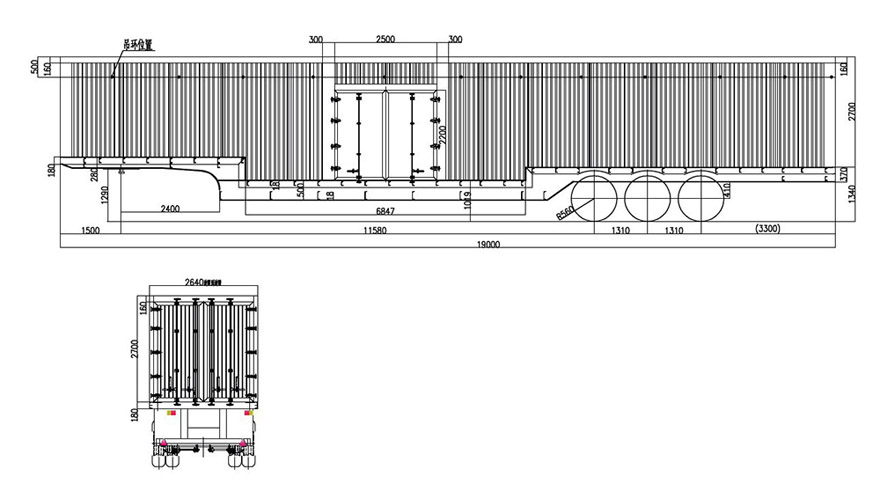

Dimension

13000mm*2490mm*2860mm(Outerside)

12800*2300*1800mm

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5

Tire

12.00R22.5/ 315 80R22.5

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T orChinabrand 28Tons (Double speed)

Main beam

Height:500mm, upper plate is14mm, middle plate is8mm,

down plate is16mm; Material is Q345B Steel .

Side beam

16mm or18mmchannel steel (Material is Q235steel).

Side Wall

600mm-1800mm the open door can be choose freely.

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamberTKL brand; Two pieces of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)  ,optional

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

Semi Trailer Surface Coating

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping terms

By Bulk cargo carrier,RORO or 40’HQ container



Introduction:

This series of box semi trailer is mainly used to transport home appliances, textiles, coals, sands, and other building materials as well as goods that can be carried by pallets. Van trailer with a length more than 16m is often used to transfer goods between two inland countries.

The fully enclosed trailer body is made of high-strength steel plates welded together to form an ample loading space. X-shaped brace allows the box to load heavier goods while still keeping a lightweight design.

Various types of box tops are available to meet various customer needs, including closed, slide open, open, and open type with tarpaulin rod. Unique to the box semi trailer is the side guardrail that protects both sides of the van trailer during driving. Rear guard design comes with special devices that facilitate the push of the trailer from behind. The trailer box opens on both sides to allow easy and fast unloading.


Box semi trailer

Box semi trailerBox semi trailerBox semi trailerBox semi trailer
