Side semi trailer

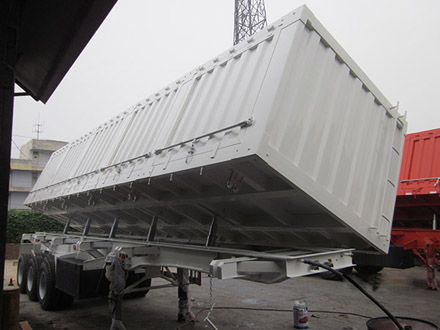

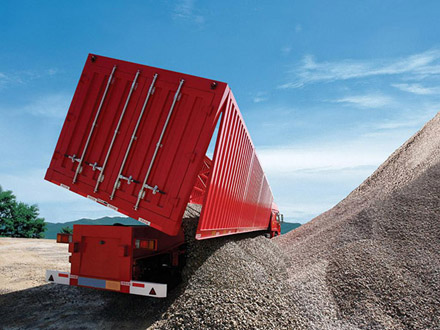

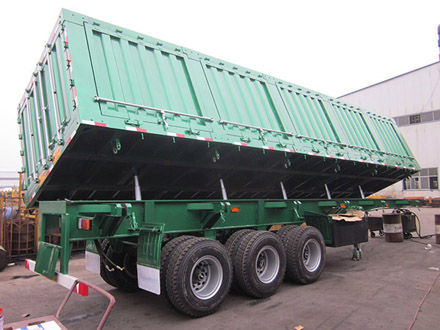

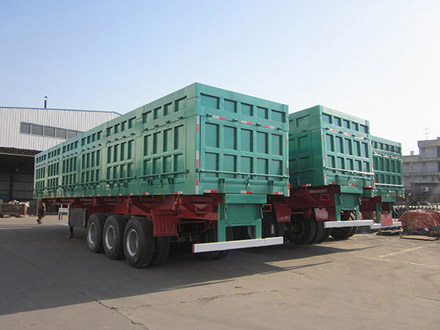

The side dump semi trailer has a dumping box that allows loose materials to be dumped from the side. It is often used to efficiently transport sands, small stones, and other building materials

Please call:
+86-537-6588123

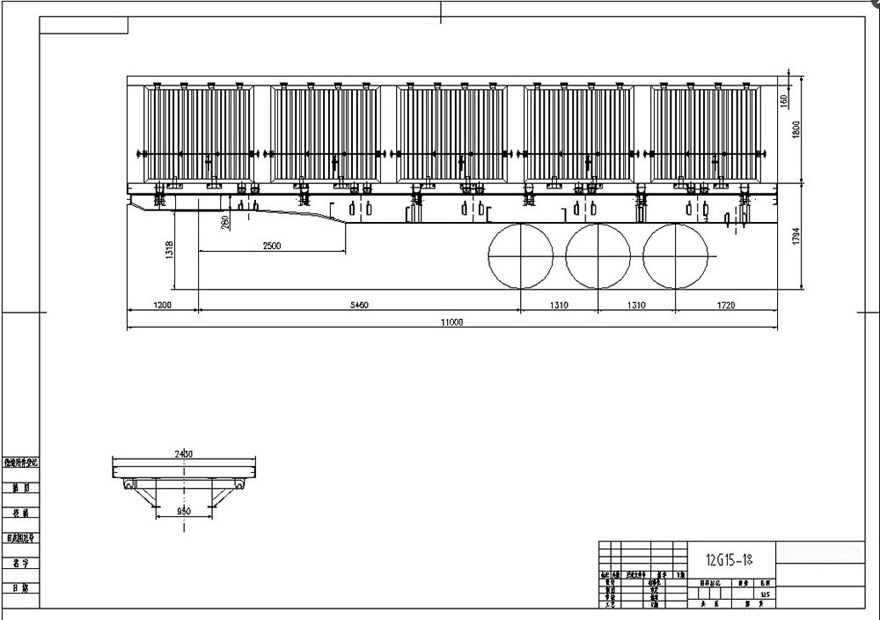

Dimension

9200×2400×3200mm ( outside dimension)9000×2200×1500mm (inside dimension )

Tare Weight

About 10000KGS

Total Volume ( m3 )

30 m³ or less than 50tons

Side wall thickness (mm )

2.3mm Q235 steel (three or five automatic opening doors )

Bottom Plate Thickness(mm)

3mm checkered plate /Q235 steel

Lifting System

Full set of hydraulic lifting system (four 125 diameter lifting cylinders, and one 140mm diameter lifting cylinder.)

Chassis

Main Beams

Height:500mm Upper plate: 16mm Middle plate: 8mm (2-in-1 or 3-in-1 plate) Lower plate: 18mm Material :Q345B steel

Axle

3 axles, FUWA/HUAJING brand 13tons or 16tons per axle

Landing Gear

JOST (D200T ) or Chinese brand 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/ American type /

Leaf Spring

90(W)mm×13(Thickness)mm×10 layers

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber; 45L air tank

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Various tire brands are available.

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

One standard tool box

Shipping Terms

By Bulk Cargo or RORO The trailer size can be designed according to your special requirements. You can choose a 6×4 model truck for use with your semi trailer.




Introduction

The side dump semi trailer has a dumping box that allows loose materials to be dumped from the side. It is often used to efficiently transport sands, small stones, and other building materials

High-strength, cold-rolled plates are used to construct the dumping box, resulting in light weight. The plates have been through pickling and benderizing to improve the adhesion of painting to the plate surface.

The trailer main beam and the longitudinal beam of the dumping box have been sent through submerged arc welding process. A specialized loader is used to assemble the axle and leaf spring to the accurate position.

The chassis is made of 16Mn steel. Welded steel longitudinal beam and hardened steel main beam make up the main framework of the trailer. The dumping box can be designed in one of the two shapes: either dust-pan or rectangular. High strength, large lifting force, maximum rigidity, great payload, and minimal deformation are the major benefits of our dumping vehicle for its users.

We are a specialist in design and production of side dump semi trailer. With 25 years of hands-on experience in dump trailer industry, we are capable of producing 7000 side dumper trailers on an annual basis. Our products have been exported to the Middle East, South America, and Africa.

If you are interested in our side dump semi trailer, please contact us. Simply tell us the kind of materials to be transported, and we can then design a suitable semi trailer model to meet your needs.
