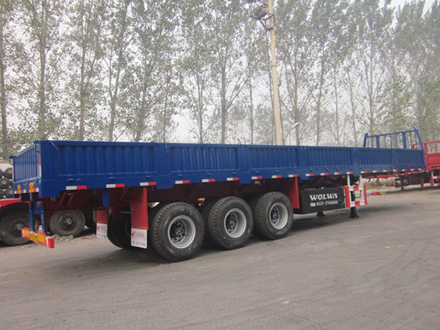

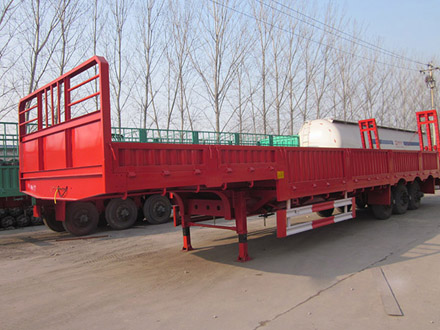

Drop side semi trailer

The drop side semi trailer has fence-like steel walls surrounding it on all four sides. The primary use of our drop sider is in the medium- and long-distance on-road transportation of heavy bulk materials. Upon your request, we can add more twist locks to containers as well as removable posts to the trailer.

Please call:
+86-537-6588123

Tare Weight

About 7.6T

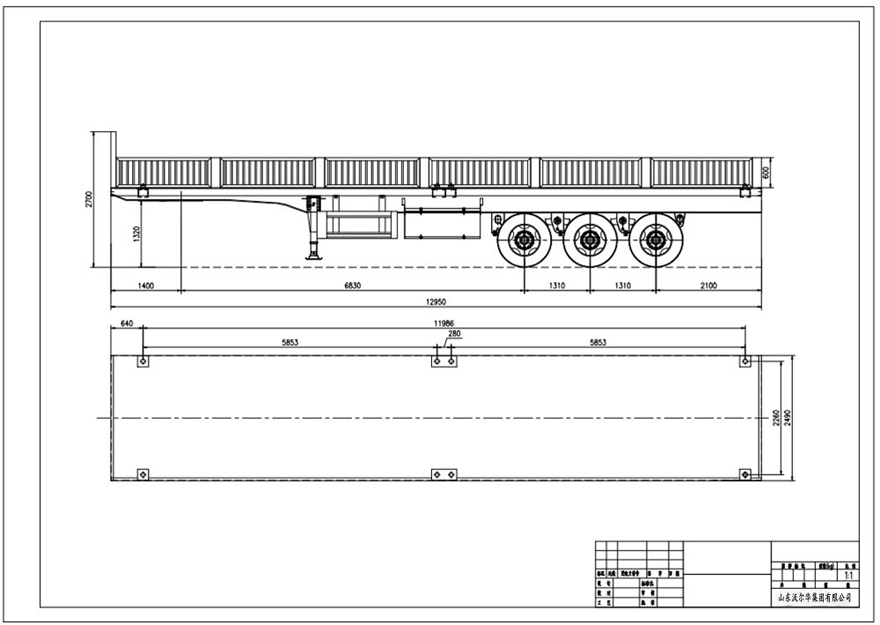

Dimension

13000mm×2490mm×2860mm

Loading Capacity (T)

≤ 60 T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5 9.75-22.5 (Specially designed for oversea markets.)

Tire

12.00R22.5/ 315 80R22.5 (Specially designed for oversea markets.)

Suspension

Mechanical suspension (German or American Type) or air suspension (Chinese brand or BPW brand) (Specially designed for oversea markets.)

Spring leaf

90(W)mm×13(Thickness)mm×10 Layers or 10mm×12mm×12 layers (Specially designed for oversea markets.)

King pin

JOST brand 2.0 or 3.5inch (bolted or welded type)

Support leg

JOST brand D200T or Chinese brand 28Tons (Double speed)

Main beam

Height: 500mm Upper plate: 14mm Middle Plate: 8mm
Bottom Plate is 16mm; Material: Q345B Steel

Side beam

16mm or 18mm steel channel (Material: Q235steel ).

Bottom Platform

3mm-thick checkered plate

Trailer Sides

600mm -1500mm, or box type sides

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (lifting type or twist Screw type)

Valve

WABCO valve

Light

LED light (specially intended for oversea market )

Voltage

24V

Receptacle

7-pin Socket (for 7 wire harness)

Tool box

1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

Semi Trailer Surface Coating

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.

Introduction

The drop side semi trailer has fence-like steel walls surrounding it on all four sides. The primary use of our drop sider is in the medium- and long-distance on-road transportation of heavy bulk materials. Upon your request, we can add more twist locks to containers as well as removable posts to the trailer.

You can use our semi trailer to carry timbers, 40inch or 20 inch containers.

Process
Main parts of our drop side trailer are machined by advanced equipment. The vertical beam is a welded structure produced by using a US automatic- tracking welder through submerged arc welding process. Axles are installed to the semi trailer accurately with a loader. Precise axle track can be achieved thanks to the distance measuring tool.

All the parts are put through sandblasting process. The trailer body has been subject to pickling andbonderzing to improve the adhesion of paint to the trailer surface. The assembly parts are first spray painted prior to being assembled.

Transportation

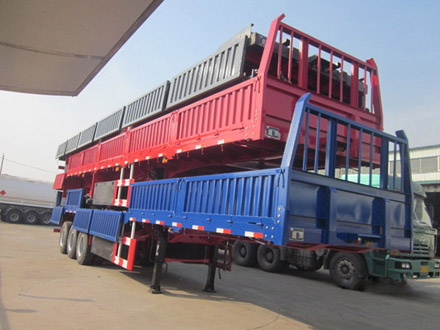

The removable fence-like sides have a height below 80cm. The trailer can put in a 40inch container or, a large break bulk cargo for shipping.
