HBTS50-12-82R Concrete pump

Concrete pump, also known as concrete pump, composed of pump and pipe. Is a use of pressure, the concrete along the pipeline continuous transport of machinery, mainly used in housing construction, bridges and tunnel construction. At present, it is mainly divided into gate valve mixed soil pump and S valve mixed pump. Another kind of pump body is installed in the car chassis, and then equipped with retractable or inflected cloth rod, and the composition of the pump.

Please call:
+86-537-6588123

HBTS50-12-82R Concrete pump introduction

Concrete pump, also known as concrete pump, composed of pump and pipe. Is a use of pressure, the concrete along the pipeline continuous transport of machinery, mainly used in housing construction, bridges and tunnel construction. At present, it is mainly divided into gate valve mixed soil pump and S valve mixed pump. Another kind of pump body is installed in the car chassis, and then equipped with retractable or inflected cloth rod, and the composition of the pump.

HBTS50-12-82R Concrete pump Main technical data

Items

项目内容

Units

单位

Parameters

参数

HBTS50-12-82R

Whole performance of machine

整机性能

Max. theo. concrete output (L./H.)

最大理论混凝土输送量(低压/高压)

m3/h

61/38

Max.concrete pumping pressure (H. /L.)

最大泵送混凝土压力(高压/低压)

MPa

12/7

Distribution valve type

分配阀形式



S管阀

S Valve

Concrete cylinder diameter×stroke

混凝土输送缸缸径×行程

mm

Ф180×1300

Hopper capacity×feeding height

料斗容积×上料高度

L×mm

400×1250

Outlet diameter

出料口直径

mm

Ф150

Power system

动力系统

Diesel engine model

柴油机型号



潍柴道依茨

Electrical engineering power

额定功率

kW

82

Rotate speed

额定转速

r/min

2100

Hydraulic system

液压系统

Circuit type

液压油路形式



Open circuit

开式回路

Pumping system pressure

泵送系统油压

MPa

31.5

Mixing system pressure

搅拌系统油压

MPa

6

Capacity of oil tank

液压油箱容积

L

370



The biggest transportation is away from vertically (/Level)

最大输送距离  垂直/水平

m

160/500

Other parameters

   其它参数

Max. aggregate diameter

允许最大骨料粒径

mm

Slick scree卵石: 50

Scree碎石: 40

Inside diameter of delivering pipe

混凝土输送管内径

mm

Ф125

Dimensionslength×width×height

外形尺寸:长×宽×高

mm

4800×1750×1900

Total weight 总质量

kg

3900

HBTS50-12-82R Concrete pump Main configuration

Name名称

Items内容

HBTS50-12-82R

Diesel engine model

柴油机型号

82kw

Circuit type

液压系统油路形式

Double hydraulic open loops with two pumps

开式双泵双回路

Main hydraulic pump

主油泵

 川崎K3V112

Main valve and control valve block主阀及控制阀块

Beijinghuade

北京华德

Agitator motor搅拌马达

ningbo

宁波

Pumping cylinder

泵送油缸

Φ110/80×1300

Concrete cylinder

混凝土缸

Φ180×1300

Spectacles wear plate and cutting ring眼睛板、切割环

Wear

耐磨

Lubrication system

润滑系统

Manual lubrication pump/double-distributor

手动润滑泵、双线分配器

Mixing auto-reverse

搅拌自动正反转

Have

Remote control遥控器

无线遥控

Radiator冷却器

Air-cooled风冷

High-low pressure switch

高低压切换

Have

HBTS50-12-82R Concrete pump Main technical feature

2.1 Hydraulic system

Ø Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.

Ø Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.

Ø Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.

Ø Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.

Ø Cone sealing of all pipes make the pipe joints seal reliably.

Ø The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.

Ø Adopt emulsification technology of initiative and passivity recovery integration.

2.2 Electric control system

Ø Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.

Ø The wire remote equipment is convenient for operation far away.

Ø Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.

2.3Mechanical system

Ø The design of hopper and S valve and so on adoptI-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.

Ø The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.

Ø Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be useed in lower abrasion. Xinsai’s spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.

2.4Lubrication system

The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealings.

2.5Cooling system

The radiator equipment makes the working oil temperature of hydraulic system below 70℃and makes the machine in normal status.

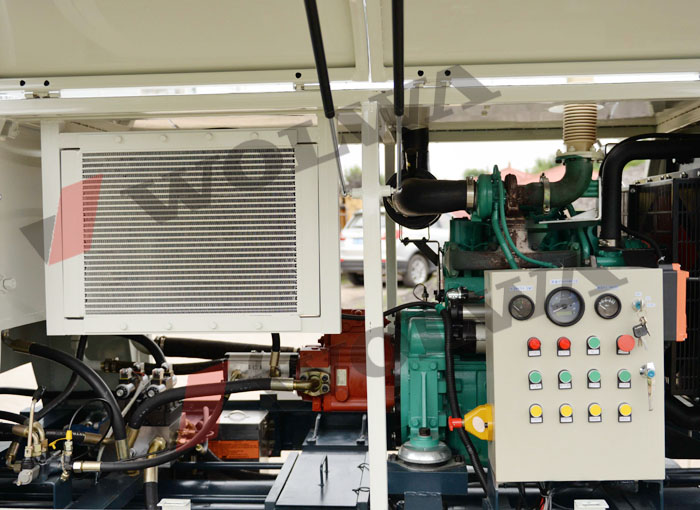

HBTS50-12-82R Concrete pump picture

HBTS50-12-82R Concrete pumpHBTS50-12-82R Concrete pumpHBTS50-12-82R Concrete pump
