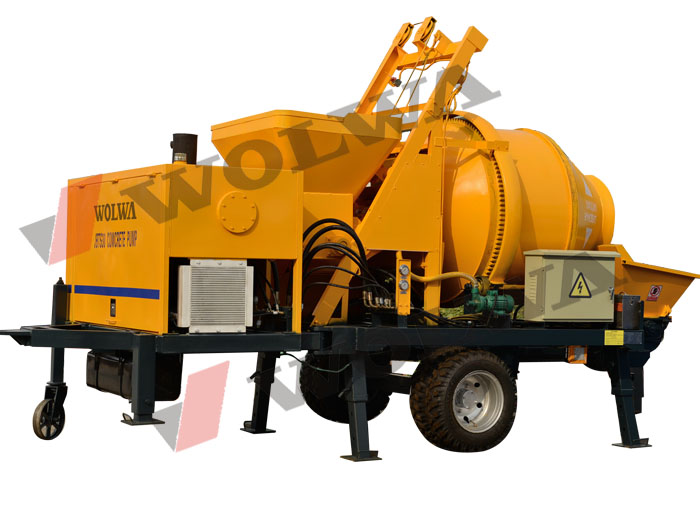

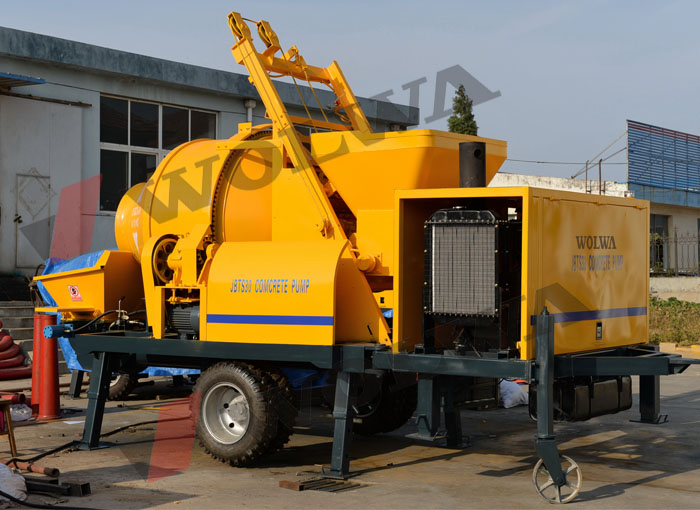

JBS40-10-80R Concrete pump introduction

Concrete pump, also known as concrete pump, composed of pump and pipe. Is a use of pressure, the concrete along the pipeline continuous transport of machinery, mainly used in housing construction, bridges and tunnel construction. At present, it is mainly divided into gate valve mixed soil pump and S valve mixed pump. Another kind of pump body is installed in the car chassis, and then equipped with retractable or inflected cloth rod, and the composition of the pump.

JBS40-10-80R Concrete pump Main technical data

Items 项目内容			Units 单位	Parameters 参数
Items 项目内容			Units 单位	JBS40
Whole performance of machine	整机性能	Max. theo. concrete output 最大理论混凝土输送量	m³/h	40
		搅拌机额定进料容量	m³	0.56
		搅拌机额定出料容量	m³	0.45
		Max.concrete pumping pressure 最大泵送混凝土压力	MPa	10
		Distribution valve type 分配阀形式		S管阀 S Valve
		Concrete cylinder diameter×stroke 混凝土输送缸缸径×行程	mm	Ф180×1000
		Hopper capacity 料斗容积	L	550
		Outlet diameter 出料口直径	mm	Ф150
Power system	动力系统	Diesel engine model 柴油机型号		康明斯
		Electrical engineering power 额定功率	kW	66
		Rotate speed 额定转速	r/min	1800
		卷扬电机功率Winding motor power	kw	液压马达
		搅拌电机功率Stir the motorPower	kw
		水泵电机功率Water pump motor powe	kw
Hydraulic system	液压系统	Circuit type 液压油路形式		Open circuit 开式回路
		Pumping system pressure 泵送系统油压	MPa	31.5
		Mixing system pressure 搅拌系统油压	MPa	6
		Capacity of oil tank 液压油箱容积	L	350
	The biggest transportation is away from vertically (/Level) 最大输送距离垂直/水平		m	150/600
Other parameters	其它参数	Max. aggregate diameter 允许最大骨料粒径	mm	Scree碎石: 40 50
		搅拌机允许最大骨料	mm	60mm
		Inside diameter of delivering pipe 混凝土输送管内径	mm	Ф125
		Dimensions：length×width×height 外形尺寸：长×宽×高	mm	6000x2200x2600
		Total weight 总质量	kg	4500

JBS40-10-80R Concrete pump Main configuration

Name名称	Items内容
Name名称	JBS40
Diesel engine model 柴油机型号	德力尔
Circuit type 液压系统油路形式	Double hydraulic open loops with two pumps 开式双泵双回路
Main hydraulic pump 主油泵	川崎K3V112
Main valve and control valve block主阀及控制阀块	Beijinghuade 北京华德
Agitator motor搅拌马达	ningbo 宁波
Pumping cylinder 泵送油缸	Φ100/70×1000
Concrete cylinder 混凝土缸	Φ180×1000
Spectacles wear plate and cutting ring眼睛板、切割环	Wear 耐磨
Lubrication system 润滑系统	/double-distributor 全自动润滑泵、双线分配器
Mixing auto-reverse 搅拌自动正反转	Have 有
Remote control遥控器	无线
Radiator冷却器	Air-cooled风冷
High-low pressure switch 高低压切换	无

JBS40-10-80R Concrete pump Main technical feature

2.1 Hydraulic system

Ø Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.

Ø Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.

Ø Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.

Ø Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.

Ø Cone sealing of all pipes make the pipe joints seal reliably.

Ø The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.

Ø Adopt emulsification technology of initiative and passivity recovery integration.

2.2 Electric control system

Ø Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.

Ø The wire remote equipment is convenient for operation far away.

Ø Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.

2.3Mechanical system

Ø The design of hopper and S valve and so on adoptＩ－DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.

Ø The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.

Ø Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be useed in lower abrasion. Xinsai’s spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.

2.4Lubrication system

The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealings.
