PRODUCTS

DLS885-9M wheeled cane loader

working weight:7600Kg
Power:48Kw/2300rpm
55 Kw/2300rpm

Please call:
+86-537-6588123

DLS885-9M wheeled Sugar cane loader feature

1, structure parts is independently producted, the whole process is quality controlled. All mechanical parts is of finite element analysis, the key welding point is tested no damage.
2, car body is our mature models, with stable and durable performance .
3, Enlarged operation room, with optional air conditioning system,clothes tree and ash boxes, the working   environment is more humanity.
4, The seat has two-way regulating functions, for both work and rest.
5, Professional and technical service guarantee, and staff in 24 hours service, timely and quickly.
6, Optional assembled with digging bucket, rotating bucket and other devices to achieve versatility.
7, Wolwa grab (with sugarcane machine) is equal to the machine hands: widely used in sanitation landfill, loading and unloading waste paper recycling, scrap metal recycling.
 working weight:7600Kg
 Power:  48Kw/2300rpm
               55 Kw/2300rpm

DLS885-9M wheeled Sugarcane loader parameter

Rate engine power 50kw
Rated engine speed  2400rpm
Hydraulic system working pressure 19.5mpa
Maximum travel speed  35kph
Fuel consumption 4li/hr
Fuel Tank capacity  130 liters
Hydraulic tank capacity 110 liters
Approximate weight 7600kg
Grade climbing ability 58% 30 degrees
Grade rotation angle  360 degrees
Grab turning speed 15-30rpm
Full swinging time 5.5 seconds
Boom length 3475mm
Arm length  1860mm
Maximum Radius of capture  6000mm
Grab Maximum Opening 1100-1200mm
Grab minimum opening 200-300mm
Maximum dump height  4000mm
Backend turning radius  1775mm
Wheelbase 2600mm
Wheel-track-front Rear  1660mm /1580mm
Minimum ground clearance   318 mm

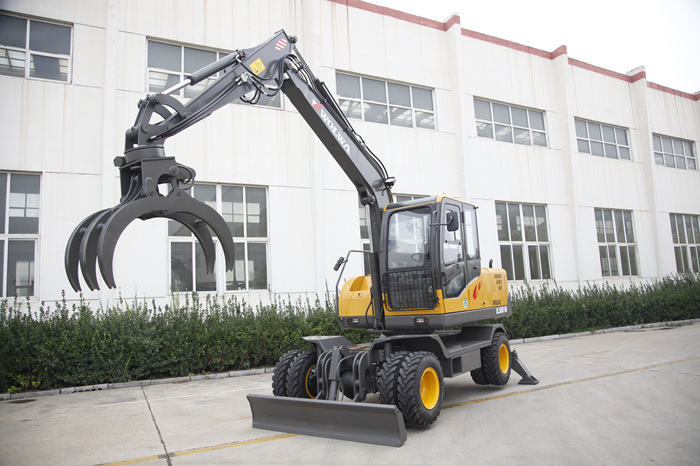

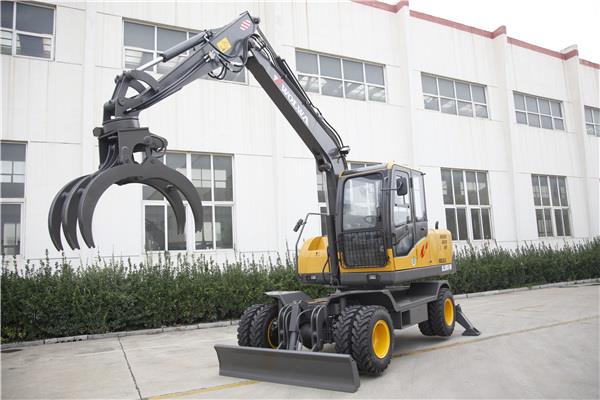

DLS885-9M wheeled Sugarcane loader Photo

DLS885-9M wheeled cane loader
