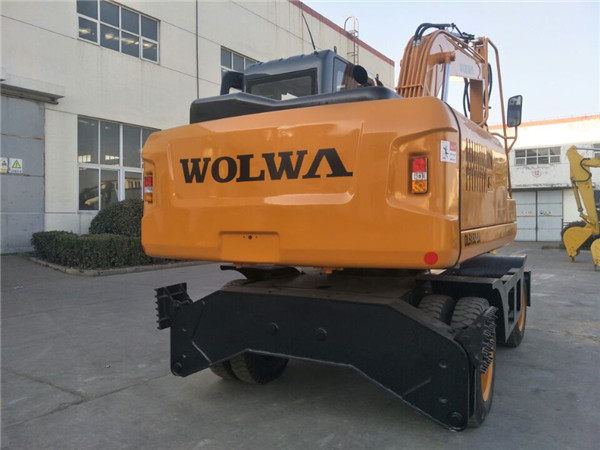

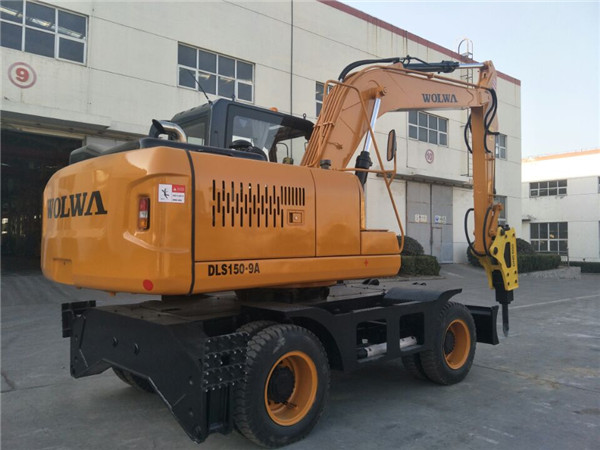

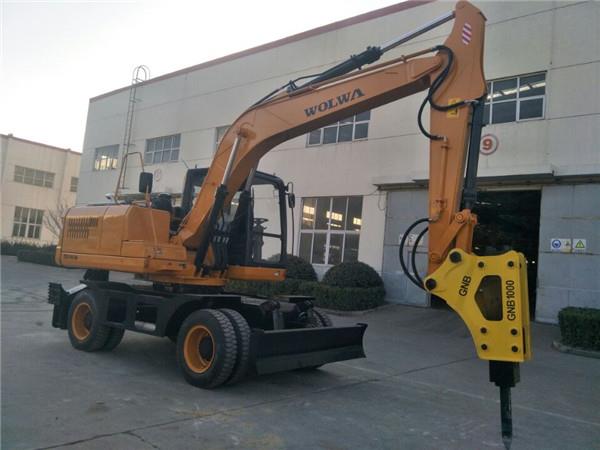

DLS150-9A BIG WEIGHT WHEEL EXCAVATOR-Product-Wolwa Group Co., Ltd.

FEATURE
PARAMETER SPARE
Leave a message

DLS150-9B wheel excavator excavator product feature

1.Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.
2.Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.
3.Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life.
4.Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity.
5.Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment.
6.Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.

DLS150-9B wheel excavator specification

	MODEL DLS150-9A
	MACHINE WEIGHT	16 TON
a	运输时总长（Shipping Length）	8015 (mm)
b	运输时总高（Shipping Height）	3120(mm)
c	整机宽度（Overall Width）	2700 (mm)
d	轮胎规格（Tyre Type）	8.25-20
e	尾部回转半径（Radius, Swing Center to Rear End）	2250 (mm)
f	轴距（Wheelbase）	2660 (mm)
g	轮距（Whell Tread）	1900 (mm)
j	转台宽度（Steering Width）	2500 (mm)

a	最大挖掘高度（Max. Digging Height）	9050(mm)
b	最大卸载高度（Max. Dumping Height）	6600 (mm)
c	最大挖掘深度（Max. Digging Depth）	5040 (mm)
d	最大挖掘半径（Max. Digging Radius）	8400 (mm)

发动机型号（Engine Type）	玉柴YC4A125Z-T20
功率（Power）	92/2200 (kw/rpm)
液压系统压力（Hydraulic System Pressure）	34.3 (MPa)
液压系统流量（Hydraulic System Flow）	126×2 (L/min)
铲斗容量（Bucket Volume）	0.6 (m³)
铲斗挖掘力（Bucket Digging Force）	85 (kN)
斗杆挖掘力（Arm Digging Force）	53 (kN)
爬坡度（Gradeability）	35%
回转速度（Rotation Speed）	11 (r/min)
行走速度（Travel Speed）	20 (km/h)
整机质量（Approximate Weight）	16000 (kg)
