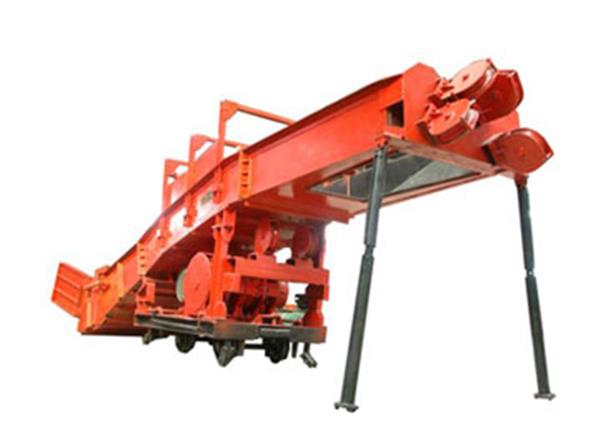

P-120B scraper loader

High efficiency, compact structure, wide application range

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

P-120B scraper loader introduction

P - 120 - b scraper rock tools high efficiency, compact structure, wide application range, etc. Used to cooperate with harvesters in rock drivage. Not only can be under 30 ° roadway rock up the hill, down the mountain, also can undertake, parallel operation, the process of improve the driving speed, is one of the main mechanical equipment of mechanized drivage.

P-120B scraper loader feature and principle

P - 120 - b scraper mucker is through two winch drum traction respectively the main rope, rope tail for the scraper for reciprocating motion to dig rock feed trough, the discharge outlet discharge into the manger harvesters or skip and realization of rock loading operation. This machine is mainly composed of fixed wedge, tail wheel, scraper, trolley, winch, operating mechanism, guide wheel, a trough (feed trough, middle trough, unloading trough) and electric parts, etc.

P-120B scraper loader parameter

scraper bucket	1.20
Technical survival rate（m3/h）	120-180
gauge（mm）	600∣900∣1500
traction（kn）	37.0-55.0
wire rope dia.（mm）	37.0-55.0
engine power（KW）	55
engine working voltage（V）	380/660
dimention（exclude plate）	length：10550，width：2250，height：2870
