P-60B scrape loader

high efficiency, simple structure, reliable performance, wide application scope

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

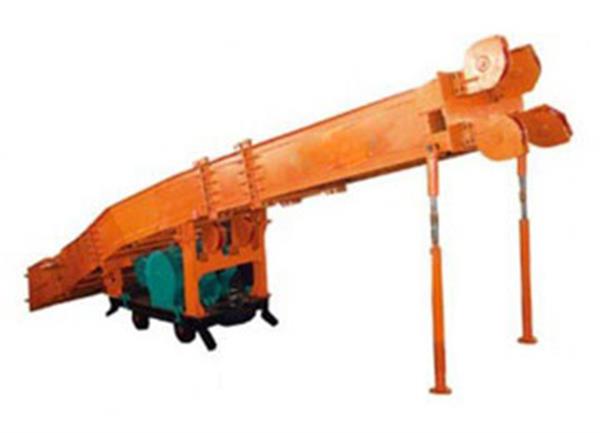

P-60B scrape loader introduction

P - 60 b scraper mucker in deading with 1.1 m 3 harvesters or skip loading operations. Apply to the clear height of 2.4 meters, net of roadway cross section 9 m 2. P - 60 b scraper with rock machine has put high efficiency, simple structure, reliable performance, widely used, etc, can be applied to the lane, and available at 30 degrees below the inclined lane, is to improve the driving speed, realize a kind of main roadway loading of mechanized equipment.

P-60B scrape loader model definition

P——Planetary transmission of scraper rock loader；

60——100 times of scrap loader volume；

B——anti -broken

P-60B scrape loader working principle

P - 60 b scraper mucker is through two winch drum traction respectively the main rope, tail rope made scraper reciprocating motion, dig the rock feed trough, the discharge outlet discharge into the manger harvesters or skip and realization of rock loading operation. This machine is mainly composed of fixed wedge, tail wheel, scraper, trolley, winch, operating mechanism, guide wheel, a trough (feed trough, middle trough, unloading trough) and electrical parts, etc.
