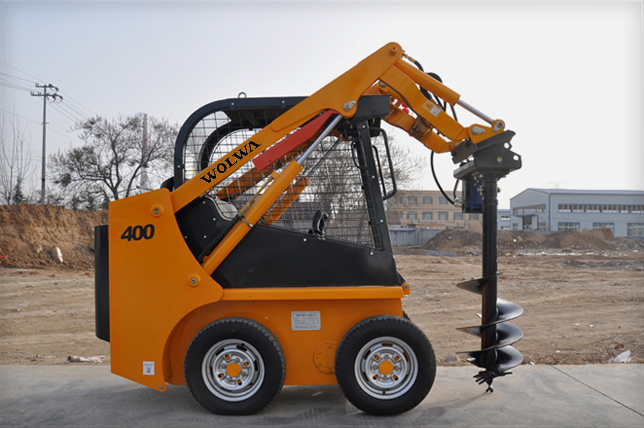

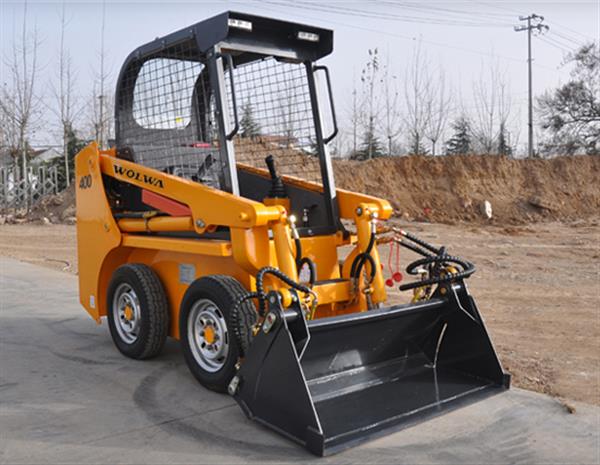

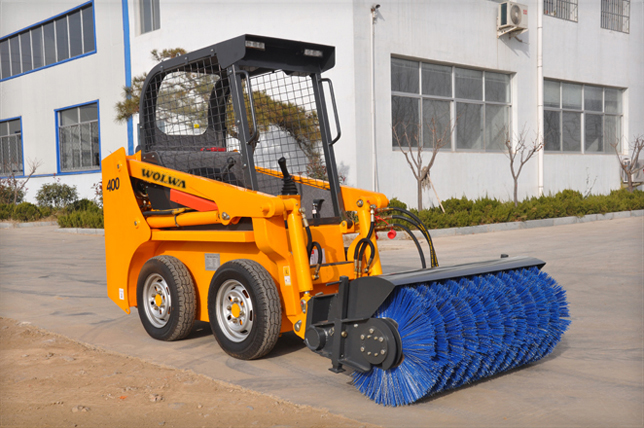

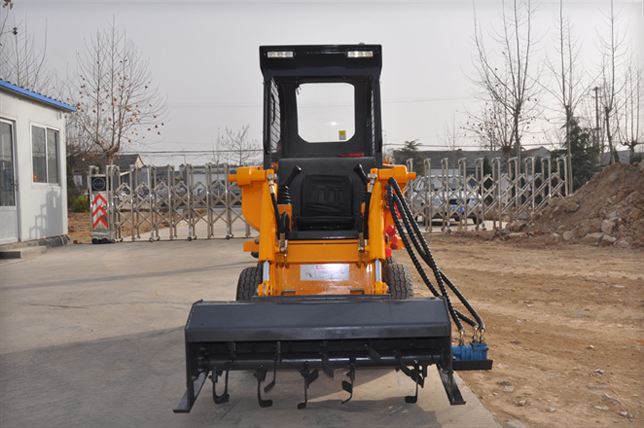

GN400 skip steer loader is a small skip steer loader, the body is only 1.729 meters, the minimum turning radius less than 2 meters, suitable for small space, widely used in the botanical garden, pastures and small projects.
GN400 skip steer loader is a small skip steer loader, the body is only 1.729 meters, the minimum turning radius less than 2 meters, suitable for small space, widely used in the botanical garden, pastures and small projects.
|

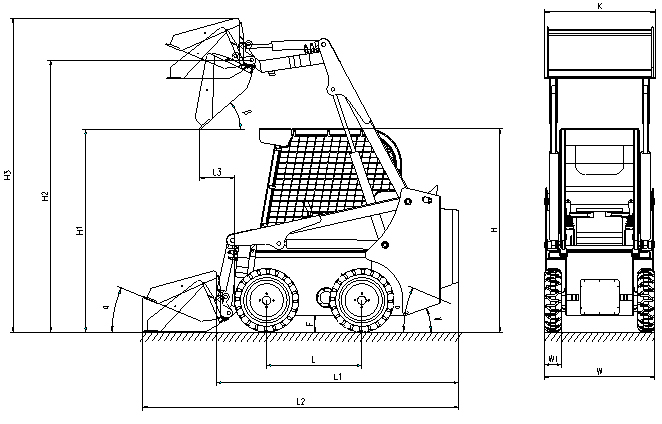

GN400 outline dimension |
|
GN400 specification |
||||
|
NO |
Item |
size |
|
NO |
Item |
parameter |
|
1 |
Max working height（H3） |
2651mm |
|
1 |
Rate load |
400KG |
|
2 |
Max pin height（H2） |
2301mm |
|
2 |
Total weight |
1400KG |
|
3 |
Max dump height(H1) |
1710mm |
|
3 |
Engine |
D1803 KUBOTA |
|
4 |
The highest point of discharging distance（L3） |
301mm |
|
4 |
Rotating speed |
2200r/min |
|
5 |
Wheelbase（L） |
800mm |
|
5 |
Engine type |
Water cool cylinder three |
|
6 |
Cab height（H） |
1729mm |
|
6 |
Power |
22.8KW(31HP) |
|
7 |
The height from the ground（F） |
141mm |
|
7 |
speed |
0-8Km/h |
|
8 |
Length without bucket（L1） |
2042mm |
|
8 |
Dumping angle |
41° |
|
9 |
Total length（L） |
2655mm |
|
9 |
Turn angle |
360°Steering in place |
|
10 |
bucket width（K） |
930mm |
|
10 |
Departure angle |
24° |
|
11 |
Total width（W）<, /o:p> |
928mm |
|
11 |
Drive type |
4WD |
|
12 |
Tread width,centerline to centerline(P) |
784mm |
|
12 |
Bucket capacity |
0.2m3 |
|
13 |
Tire width（W1） |
175mm |
|
13 |
Tire |
145R12C |
|
14 |
Daparture angle（γ） |
20° |
|
14 |
Hydraulic pump flow |
63L/min |
|
15 |
Dumping angle at max height(β) |
41° |
|
15 |
Pressure |
17MP |
|
16 |
Rollback of bucket on ground（α） |
23° |
|
16 |
fuel tank capacity |
42L |
|
17 |
Min turning radius（R） |
1908 |
|
17 |
Hydraulic oil tank capacity |
42L |
|
|
|
|
|
18 |
Battery |
36AH |
|
|
|
|
|
19 |
Electric current |
36A |
|
|
|
|
|
20 |
Voltage |
12V |
|
|
|
|
|
21 |
Noise |
≦107dB（A） |
|
|
|
|
|
23 |
Moter |
Heron |
