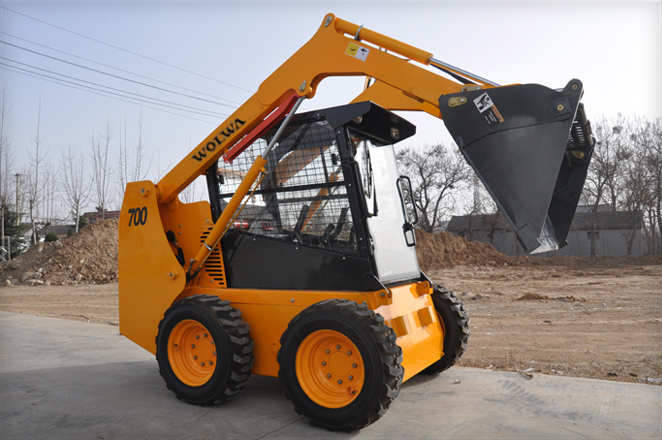

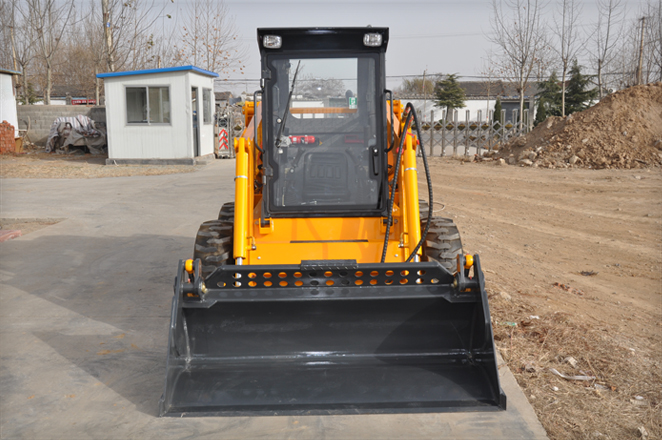

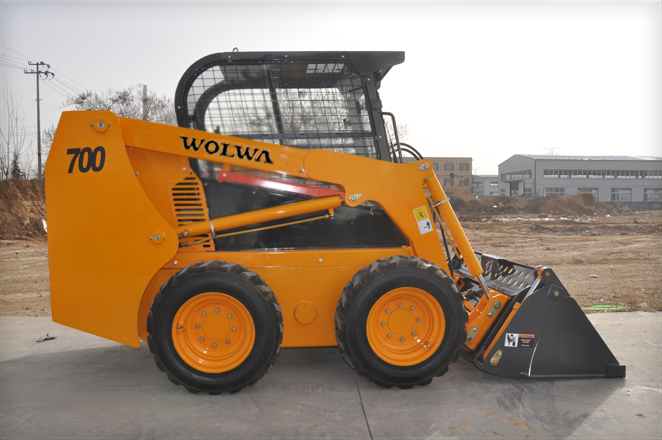

skip steer loader GN700 pordcut characteristic

1、Advanced and efficient transmission output type, duplex pump connect motor directly

2、integral structure frame, more strength higher stabe , rear radiator, paratactic type cooling effect is batter.

3、With domestic famous brand engine, powerful drive energy conservation and environmental protection

4、Adopt American Danfoss hydraulic system, the hole hydraulic system is stable and reliable

5、Work system adopts pedal operation,drive system USES double hands according with international operation habit

6、Cab with large angle tip-back design ,more maintenance space,back cover 、upper canopy could open up. Maintenance more convenient,A person easily done

7、high strength cab meet ROPS/FOPS international safety standard , driving space bigger and more comfortable

8、Adopting integrated control panel design, the overall performance parameters of the be clear at a glance, make sure that you can comprehensive mastery the machine when operating

9、Hydraulic operating system, the use of electronic self-locking interlock design, reduce the mistake and operation more safer

10、Dual accelerator control, convenient manual accelerator , feet accelerator is more suitable for your daily operation habit

11、Adopt the internationally quick change device can be quick and convenient replacement of all sorts of affix, hydraulic quick change connectors can matching with most manufacturers affix or body

12、Configurable multiple appendage use

13、Using radial lifting work arm, higher efficiency

skip steer loaderGN700 technical parameters

skip steer loader GN700 technical parameters

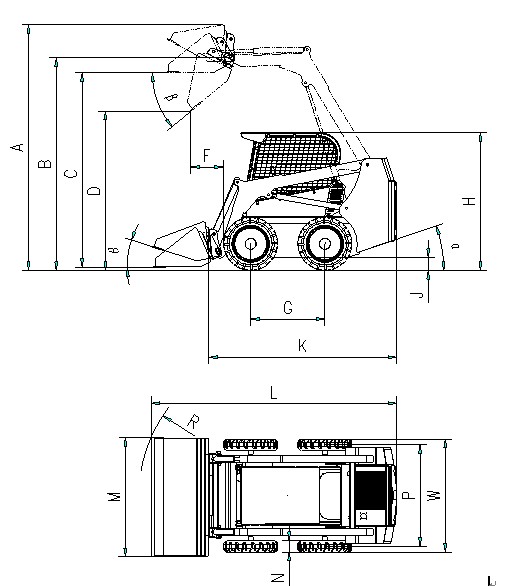

GN700 Outline dimension			GN700 parameters
NO	Item	size	NO	Item	参数
1	Max working height（A）	3490mm	1	Rate load	700KG
2	Max pin height（B）	3028mm	2	Total weight
3	Max level bucket height（C）	2814mm	3	Engine	498BPG
4	Max dump height(D)	2266mm	4	Rotating speed	2500r/min
5	>The highest point of discharging distance（F）	437mm	5	Engine type	4 cylinder,water cool,4ahead reach
6	Wheelbase（G）	1044mm	6	Power	45KW
7	Total height（H）	1979mm	7	Standard fuel consumption	≦240g/KW·h
8	The height from the ground（J）	196mm	8	Maximum torque fuel consumption	≦238g/KW·h
9	Length without bucket（K）	2621mm	9	Noise	≦117dB（A）
10	Total length（L）	3400mm	10	Generator power	500W
11	bucket width（M）	1720mm	11	Voltage	12V
12	Total width（W）	1665mm	12	Battery	105AH
13	wheelspan(P)	1425mm	13	Speed	0-10 Km/h
14	Tire thickness（N）	240mm	14	Drive type	Static pressure four-wheel drive
15	Departure angle（α）	19°	15	Tire	10-16.5
16	dump angle(β)	41°	16	Hydraulic pump flow	110L/min
17	Rollback of bucket on ground（θ）	18°	17	Hydraulic pump flow	50L/min
18	Mini turning radius（R）	2056mm	18	Pressure	15MP
			19	Fuel tank capacity	103L
			20	Lube tank capacity	63L
			22	Double piston pump	SAUER
