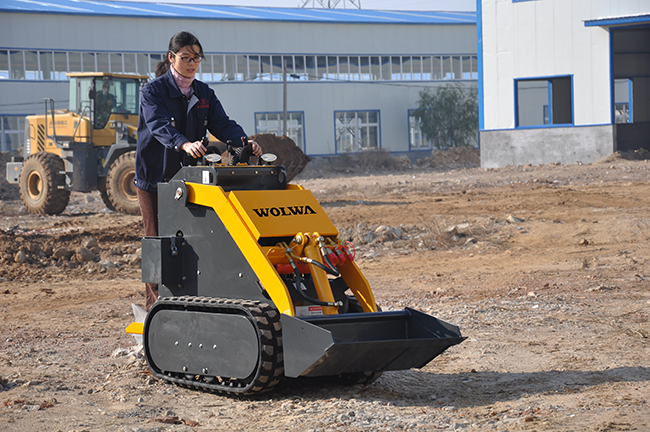

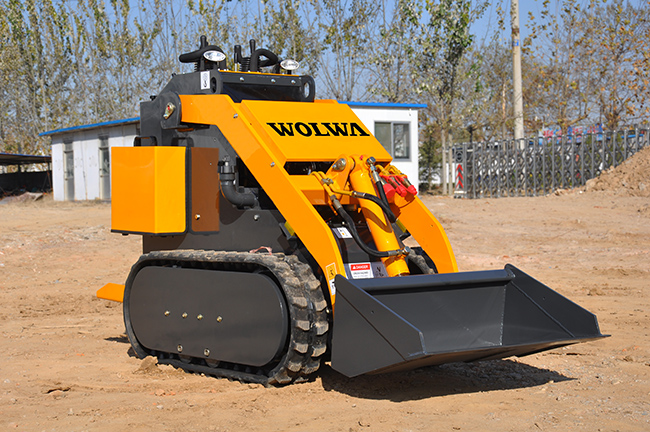

Small slide loader GN280 is a mechanical equipment with many uses,widely used in park, courtyard, lawn, garden,etc.
Small skid loader GN280 is a mechanical equipment with many uses. The fuselage is narrow, easy handling, can easily and quickly hook up a variety of different functions to realize all kinds of work widely used in park, courtyard, lawn, garden or any other place in the environment.
1, Small skid loader GN280 easy to operateDouble handle finish walking, lift and skip movementsPiston motor smoothlyFour-wheel drive adapt to various environmentMany forms of pedals, let the operation safer and more convenientBoth servo and standard operation mode
2, Small skid loader GN280 easy maintenanceOil mouth in car in vitro, convenient to replace air filter, oil, filter, spark plugThe guard plate is convenient, the cover can be opened
3, Small slide loader GN280 can be configurated with variety of affix, and is interchangeable between each model.
4, International famous brand engine, stable and reliable.5, small slide loader GN380 many kinds of tires and the track model chosen, more resilient.
6, GN280 mini loader is more narrow, only 800 mm wide. Can through narrow places, and have big fuel tank and the lifting force.
7, Small skid loader can do much simplified manual labor, improve efficiency
|
item |
GN280 |
||||
|
crawler type |
with solid tire |
with ordinary tire |
with widen tire |
|
|
|

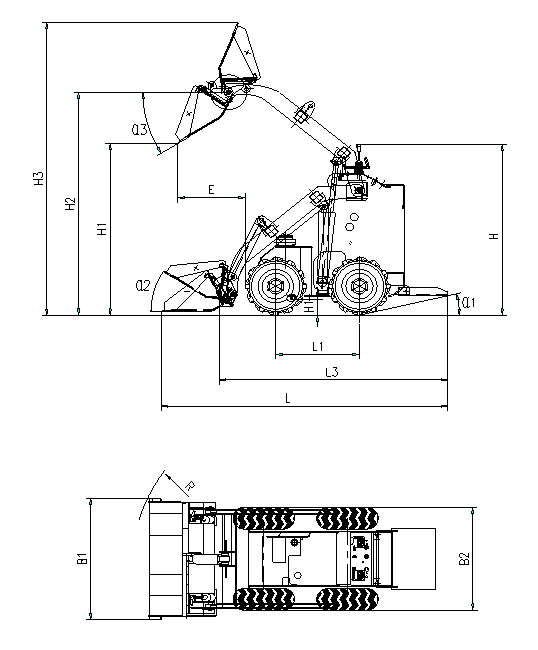

Max.working height （H3） |
2363 mm |
2330 mm |
2370 mm |
2370 mm |
2143 mm |
|
Max.pin height （H2） |
1800 mm |
1767 mm |
1807 mm |
1807 mm |
1796 mm |
|
Max.discharge height （H1） |
1412 mm |
1380 |
1420 |
1420 |
1409 |
|
Top dicharge distance （E） |
533 mm |
485 mm |
525 mm |
525 mm |
514 mm |
|
Ma.discharge angle（α3） |
29° |
29° |
29° |
29° |
29° |
|
collecting bucket angle （α2） |
36° |
36° |
36° |
36° |
36° |
|
departure angle （α1） |
13° |
10° |
14° |
14° |
12.6° |
|
total height （H） |
1302 mm |
1269 mm |
1309 mm |
1309 mm |
1297 mm |
|
ground clearance （H1） |
143 mm |
110 mm |
150 mm |
150 mm |
138 mm |
|
axle base （L1） |
652 mm |
652 mm |
652 mm |
652 mm |
652 mm |
|
length without bucket（L3） |
1752 mm |
1752 mm |
1752 mm |
1752 mm |
1752 mm |
|
toal width （B2） |
800 mm |
873mm |
876mm |
1025mm |
1000 mm |
|
bucket width（B1） |
820 mm |
820 mm |
820 mm |
820 mm |
820 mm |
|
total length with bucket |
2200 mm |
2200 mm |
2200 mm |
2200 mm |
2200 mm |
|
front turn radius(R) |
1440 mm |
1440 mm |
1440 mm |
1440mm |
1440 mm |
|
item |
GN280 |
||||
|
|
rated power （KW） |
15.435KW(21HP) |
|||
|
speed（rpm） |
3600 |
||||
|
noise（Db） |
≤95 |
||||
|
hydraulic system |
system pressure（Mpa） |
17 |
|||
|
working hour（s） |
lift |
turn |
down |
||
|
3.31 |
0.72 |
1.95 |
|||
|
parameter |
|
metric |
|||
|
|
165 Kg |
||||
|
|
0.12 m3 |
||||
|
Max.lifting force |
375 Kg |
||||
|
speed |
0-5.5 Km/h |
||||
|
|
|
794 Kg |
|||
|
|
740Kg |
||||
|
|
704 Kg |
||||
|
crawler type
|
855kg |
||||
|
tire model |
solid tire |
16×6-8 |
|||
|
ordinary tire |
5.00-8 |
||||
|
widen tire |
KT-302 18*9.5-8 6P/TL |
||||
|
|
18*6.5-8 |
||||
|
tire |
|
4.33R-8 |
|||
|
|
3.50D |
||||
|
widen tire |
8*6.5 |
||||
