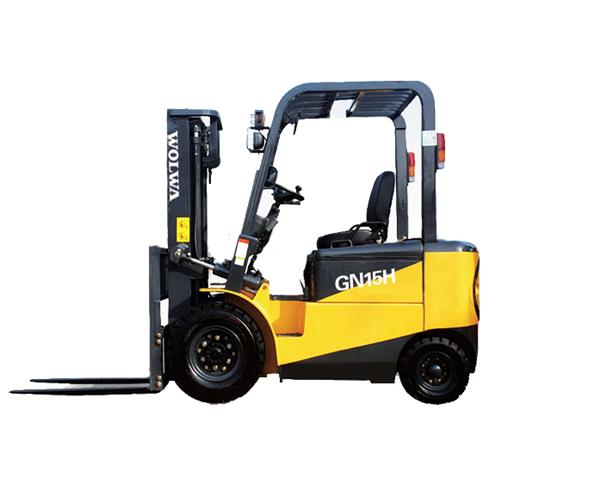

The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no pollution, easy operation, energy efficient。The operator's work intensity is much lighter than internal-combustion forklift，The electric steering system，Speed control system，hydraulic control system，braking systems Are controlled by electrical signals，Greatly reduces the labor intensity of operators，So this supply big help to improve its efficiency and the accuracy of work .
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no pollution, easy operation, energy efficient。The operator's work intensity is much lighter than internal-combustion forklift，The electric steering system，Speed control system，hydraulic control system，braking systems Are controlled by electrical signals，Greatly reduces the labor intensity of operators，So this supply big help to improve its efficiency and the accuracy of work .
•Reliable performance of the ac walking motor, no carbon brush, maintenance free
•The performance of dc motor at low speed and low noise of gear pump,Cancel the steering motor and oil pump,To achieve single pump bypass,Lowering the hoisting and in the form of noise of the vehicle.
•Advanced and reliable electric control system,High efficiency and low fever, little noise,With thermal protection and thermal compensation, overvoltage, undervoltage protection.
•User-friendly interactive multifunction meter,Appearance is beautiful,Can accurately display battery power, working time, fault code, etc
|
Specification |
Model |
GN15H |
Unit |
||
|
Rated load |
1500 |
Kg |
|||
|
Load center |
500 |
mm |
|||
|
Type |
Battery |
|
|||
|
Size |
Lifting height |
3000 |
mm |
||
|
Mast tilt F/R |
6/12 |
deg |
|||
|
Dimension |
Total length |
3137 |
mm |
||
|
Total width |
1100 |
mm |
|||
|
Total height |
2090 |
mm |
|||
|
Min. turning radius |
1900 |
mm |
|||
|
Performance |
Max. travel speed (full load/idle load) |
12/13 |
Km/h |
||
|
Max. lifting speed (full load/idle load) |
280/430 |
mm/s |
|||
|
Max. Grade ability |
15 |
% |
|||
|
Machine weight |
3280 |
kg |
|||
|
Chassis |
Tyre |
Front wheel |
6.50-10NHS |
|
|
|
Rear wheel |
5.00-8-8PR |
|
|||
|
Axle base |
1380 |
mm |
|||
|
Battery |
Voltage/capacity |
48/440 |
V/Ah |
||
|
Electric motor and control |
Power of drive motor |
7.5(AC) |
Kw |
||
|
Power of pump motor |
6.3(DC) |
Kw |
|||
|
Control mode |
MOS tube |
Kw/rpm |
|||
