Electric forklift is powered from battery , drive motor and hydraulic system, so as to realize travel and handling.
Electric forklift, compared with diesel forklift, has the advantages of no pollution, easy operation, energy efficient, the operator's work strength to light many relative tointernal combustion forklifts, electric steering system, speed control system,
hydraulic control system and brake system are controlled by electrical signals, greatly reduce the labor intensity of the operators, thus to improve the work efficiency and the accuracy of work.
Ac walking motor with reliable performance, no carbon brush and free of maintenance.
With excellent dc hoisting motor at low speed and low noise of the gear pump, cancelling the steering motor and oil pump, to achieve single pump, reduce the lifting noise.Electric control system, advanced and reliable, high efficiency, low heating, small noise, and thermal protection and thermal compensation, overvoltage, undervoltage protection.,friendly interface and interactive multifunction instrument, with beautiful appearance, can accurately display battery capacity, working time, fault code, etc.

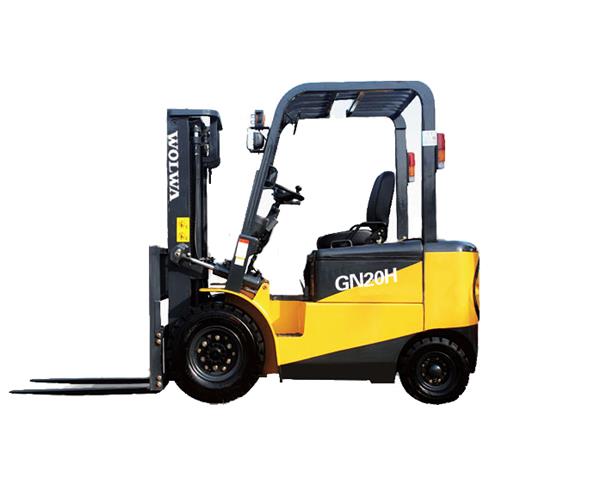

Electric forklift GN20H parameter
summary
model
GN20H
Unit
rated capacity
2000
Kg
load center
500
mm
power type
battery
dimention
lifting height
3000
mm
door frame Angle(front/rear)
6/12
deg
outline dimention
total length
3445
mm
total width
1160
mm
total height
2130
mm
Min. turn radius
2050
mm
performance
Max.travle speed(with load/without load)
12/14
Km/h
Max.lifting speed(with load/without load))
260/380
mm/sec
gradeability
15
%
self weight
4050
kg
chassis
tire
front
7-12-12PR
rear
18*7-8-14PR
axle base
1500
mm
battery
voltage/Vol.
48/600
V/Ah
Motor and controller
rive motor power
9.1(AC)
Kw
pump motor power
8.6(DC)
Kw
control type
MOS pipe
Kw/rpm
