Electric forklift GN25S summary

Electric forklift, compared with diesel forklift, has the advantages of no pollution, easy operation, energy efficient, the operator's work strength to light many relative to internal combustion forklifts, electric steering system, speed control system,
hydraulic control system and brake system are controlled by electrical signals, greatly reduce the labor intensity of the operators, thus to improve the work efficiency and the accuracy of work.

Electric forklift GN25S feature

Ac walking motor with reliable performance, no carbon brush and free of maintenance.With excellent dc hoisting motor at low speed and low noise of the gear pump, cancelling the steering motor and oil pump, to achieve single pump, reduce
the lifting noise.Electric control system, advanced and reliable, high efficiency, low heating, small noise, and thermal protection and thermal compensation, overvoltage, undervoltage protection, friendly interface and interactive multifunction instrument, with beautiful appearance, can accurately display battery capacity, working time, fault code, etc.

Electric forklift GN25S parameter

summary	model			GN25S	Unit
	rated capacity			2500	Kg
	load center			500	mm
power type				battery
dimention	lifting height			3000	mm
	door frame Angle(front/rear)			6/12	deg
	outline dimention		total length	3445	mm
			total width	1160	mm
			total height	2130	mm
	Min. turn radius			2050	mm
performance	Max.travle speed(with load/without load)			12/14	Km/h
	Max.lifting speed(with load/without load))			260/380	mm/sec
	gradeability			15	%
	self weight			4200	kg
chassis	tire	front		7-12-12PR
		rear		18*7-8-14PR
	axle base			1500	mm
battery	voltage/Vol.			48/600	V/Ah
Motor and controller	rive motor power			9.1(AC)	Kw
	pump motor power			8.6(AC)	Kw
	control type			MOS pipe	Kw/rpm

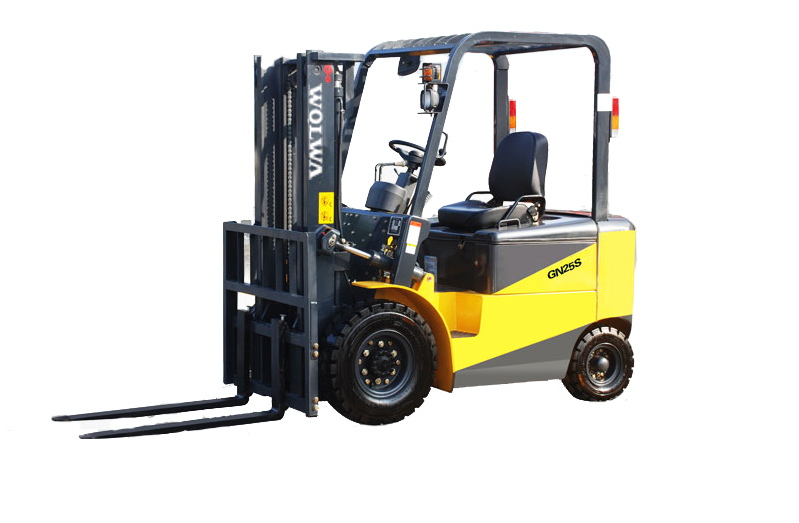

2.5T electric forklift GN25S photo
