DLS360-8 hydraulic excavator

DLS360.8 excavator with higher performance, higher quality, higher efficiency, strong power, large bucket capacity characteristics.

Please call:
+86-537-6588123

wolwa  DLS360-8 hydraulic excavotor characteristics

DLS360.8 excavator with higher performance, higher quality, higher efficiency, strong power, large bucket capacity characteristics. It have the biggest power in similar products both inland and abroad, higher reliability, lower fuel consumption, more environmentally friendly. Impact plate equiped on bucket rod to prolong the service life of the bucket rod。 Bucket choose high-capacity rock bucket, adding reinforcing steel plate, steel plate thickening, structural strength, durability is higher. Advanced and reliable hydraulic control system make the engine and the main pump to work in the best state, the system has automatic idle speed and power increase and self diagnosis features. The safe, comfortable, relaxed operating environment , the cab have Human Engineering design and Comfortable operation surrounding,excellent visibility. low noise. Standard configuration cab equiped with automatic air conditioning, make the driver has a good operating environment. 36 tons of excavator won the honorary title of "national key new product" in 2011.

wolwa  DLS360-8 hydraulic excavotor parameters


type DLS360.8 unit
weight 34.1 ton
bucket capacity 2.1
engine type CUMMINS 6CTAA8.3
power 198/2000 kw/r/min
speed 5.2/3.3 km/h
rotate speed 10.6 r/min
grabeability 70 %
bucket digging force 208 KN
ground pressure 69.4 KPa
max flow 265*2 L/min
fuel tank capacity 595 L
hydraulic tank capacity 310 L
maximum digging height 10200 mm
maximum Dumping Height 7135 mm
maximum digging depth 7370 mm
maximum vertical wall digging depth 6380 mm
least radius of gyration 4265 mm

wolwa  DLS360-8 hydraulic excavotor dimension:

total length 11260 mm
total width 2995 mm
total height(Movable arm top) 3180 mm
total height(cab roof) 3280 mm
Movable arm length 6470 mm
bucket rod length 3185 mm

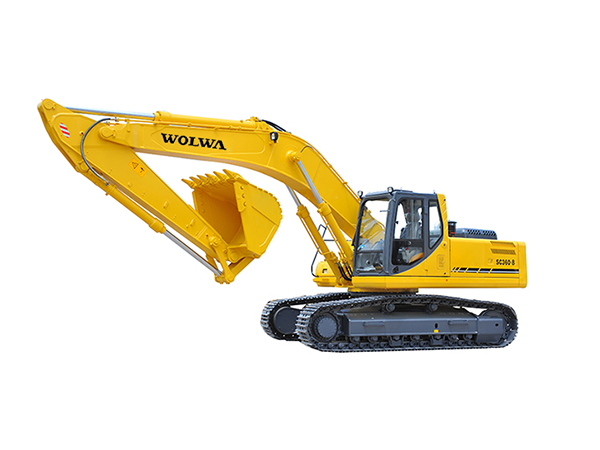

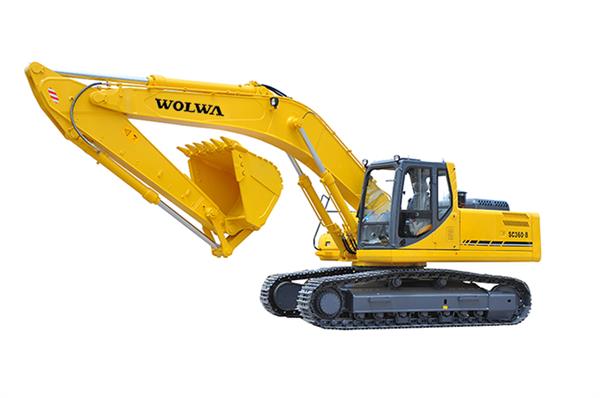

wolwa  DLS360-8 hydraulic excavotor entity photo:

 DLS360-8 hydraulic excavator
