DLS270-8LC hydraulic excavator

Please call:
+86-537-6588123

wolwa  DLS270-8 hydraulic excavotor characteristics

USES the international first-class brand hydraulic system and  rotary motor, engine USES the euro ii emission standard of cummins engine, achieving high efficiency at the same time reduce the fuel consumption, in order to increase domestic fuel adaptability, conforms to China's national conditions, 27 tons of excavator with original large oil-water separator, prolong the service life of the engine. Bridge with the rolling resistance, high strength frame structure, the overall increase rigidity, with large internal operating environment, eye shot is open. Using damping shock absorber, reducing the vibration and noise, is equipped with a comprehensive adjustable suspension seat and imported automatic air conditioning system, large screen LCD, realize the intelligent control, realize the convenient and comfortable operation, safer and more efficient. 27 tons of excavator to achieve the operation efficiency is 15% higher than the same tonnage excavator, energy consumption was reduced by 20%, to achieve the optimal price performance ratio, strong motivation and rapid action bring great efficiency. Host design is suitable for a variety of applications, and is easy to install different attachments, in various conditions can achieve maximum efficiency。

wolwa  DLS270-8 hydraulic excavotor parameters

type DLS270.8 unit
weight 26.8 ton
bucket capacity 1.3
engine type CUMMINS 6BTAAB5.9
power 133/2000 kw/r/min
speed 4.1/2.5 km/h
rotate speed 10.5 r/min
grabeability 70 %
bucket digging force 159 KN
ground pressure 58.2 KPa
max flow 226*2 L/min
fuel tank capacity 350 L
hydraulic tank capacity 246 L
maximum digging height 9370 mm
maximum Dumping Height 6500 mm
maximum digging depth 6810 mm
maximum vertical wall digging depth 5800 mm
least radius of gyration 3975 mm

wolwa  DLS270-8 hydraulic excavotor dimension:



total length 9840 mm
total width 3190 mm
total height(Movable arm top) 3500 mm
total height(cab roof) 3160 mm
Movable arm length 5850 mm
bucket rod length 3050 mm

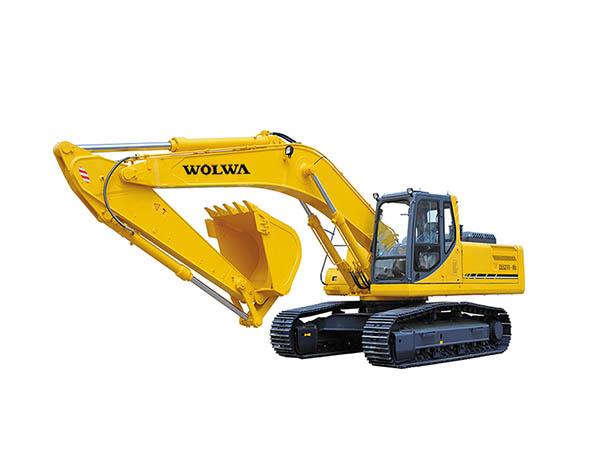

wolwa  DLS270-8 hydraulic excavotor entity photo:


DLS270-8LC hydraulic excavator
