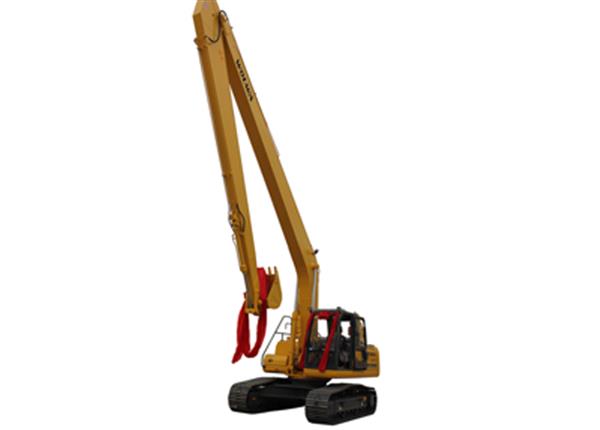

DLS220.8 extended arm excavator bucket volume 0.35 cubic meters, the work unit length of 18 meters, greatly expand the scope of mining activities, the scope of reach higher, deeper and further.
DLS220.8 extended arm excavator bucket volume 0.35 cubic meters, the work unit length of 18 meters, greatly expand the scope of mining activities, to achieve higher, further and further, the range of special to adapt to the mine, wharf, warehouse, fighting and emergency operations and special occasions, is a major breakthrough in the mining machinery, has a great practical value.
| type | DLS220.8(18m add length) | ||
| series number | |||
| bucket capacity | m³ | 0.35 | |
| operation weight | kg | ||
| movable arm length | mm | 9960 | |
| bucket rod length | mm | 7733 | |
| additional weight | kg | 5960 | |
| property | |||
| working range | maximum digging depth | mm | 14230 |
| maximum digging radius | mm | 18120 | |
| maximum surface digging radius | mm | 18057 | |
| maximum digging height | mm | 14270 | |
| maximum dumping height | mm | 12088 | |
| traction | KN | 174 | |
| rotating speed | rpm | 11.7 | |
| speed | km/h | L:3.1 H:5.5 | |
| gradeability | 35° | ||
| total length | 13810mm |
| total width | 2980mm |
| track width | 2980mm |
| total height | 3292mm |
| cab roof height | 3114mm |
| upper structure distance from the earth | 1064mm |
| minimum gap | 442mm |
| Tail turning radius | 2809mm |
| The work device of minimum radius of gyration | 6398mm |
| Working device on the minimum turning radius top level | 11020mm |
|
ground contact length of track |
3445mm |
| track length | 4256mm |
| track gauge | 2380mm |
| track shoe width | 600mm |
