整机性能Specifications |
|
额定载荷Rated operating capacity(kg) |
850 |
倾翻载荷Tipping load(kg) |
1700 |
铲斗容量Bucket capacity(m3) |
0.45-0.5 |
机器操纵质量Operationg weight(kg) |
3300 |
行驶速度Max. travel speed(km/h) |
12 |
工作流量Hydraulic pump flow(L/min) |
|
油箱容量Fuel tank capacity(L) |
90 |
轮胎型号Tires |
12/16.5NHS |
整车尺寸Overall dimensions(mm) |
3490×1820×2150 |
整机参数Dimensions |
|
最大操作高度Height at maximum extension(mm) |
4000 |
铰接销高度Height to bucket hinge pin(mm) |
3100 |
带斗宽度Width with bucket(mm) |
1830 |
轮距Track width(mm) |
1500 |
轴距Wheelbase(mm) |
1085 |
离地高度Ground clearance(mm) |
200 |
倾倒角Dump angle |
30° |
倾倒高度Dumping height(mm) |
2400 |
接近角Rollback at ground |
26° |
离去角Angle of departure |
20° |
发动机Engine |
|
型号Maker/Model |
新柴498 |
功率转速Net power |
61.2hp/2500rpm |
类型Type |
直喷直列水冷四冲程柴油机 |
排量Displacement(L) |
3.2 |
标准配置Standard |
|
封闭驾驶室Deluxe enclosed operator cab |
|
手动控制Hand control system(Mechanical type) |
|
标准铲斗Standard bucket |
|
辅具输出装置Auxiliary hydraulic couplers |
|
可选配置Optional |
|
低温起动装置Prehest starting assist system for extreme cold weather |
|
内置暖风Cab fitted with a heater as standard |
|
冷暖空调Air conditioner |
|
双速系统2-speed transmission system |
|

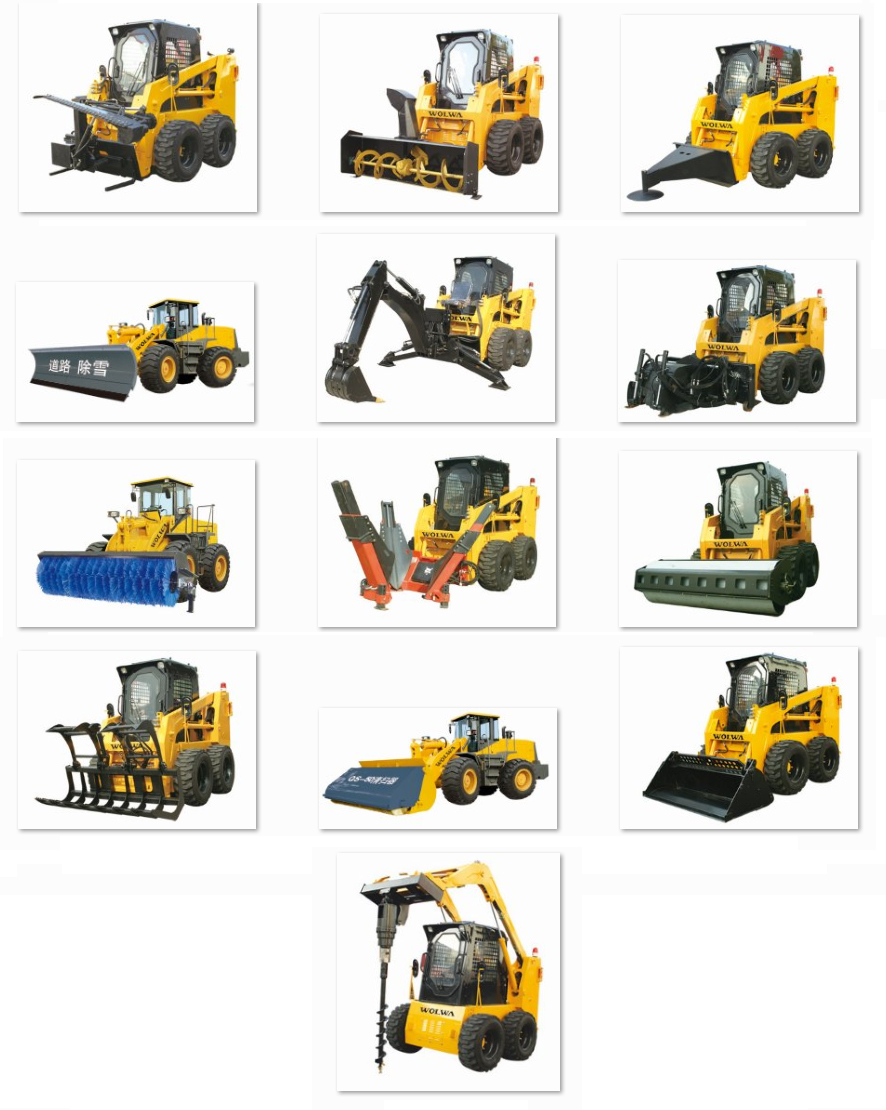

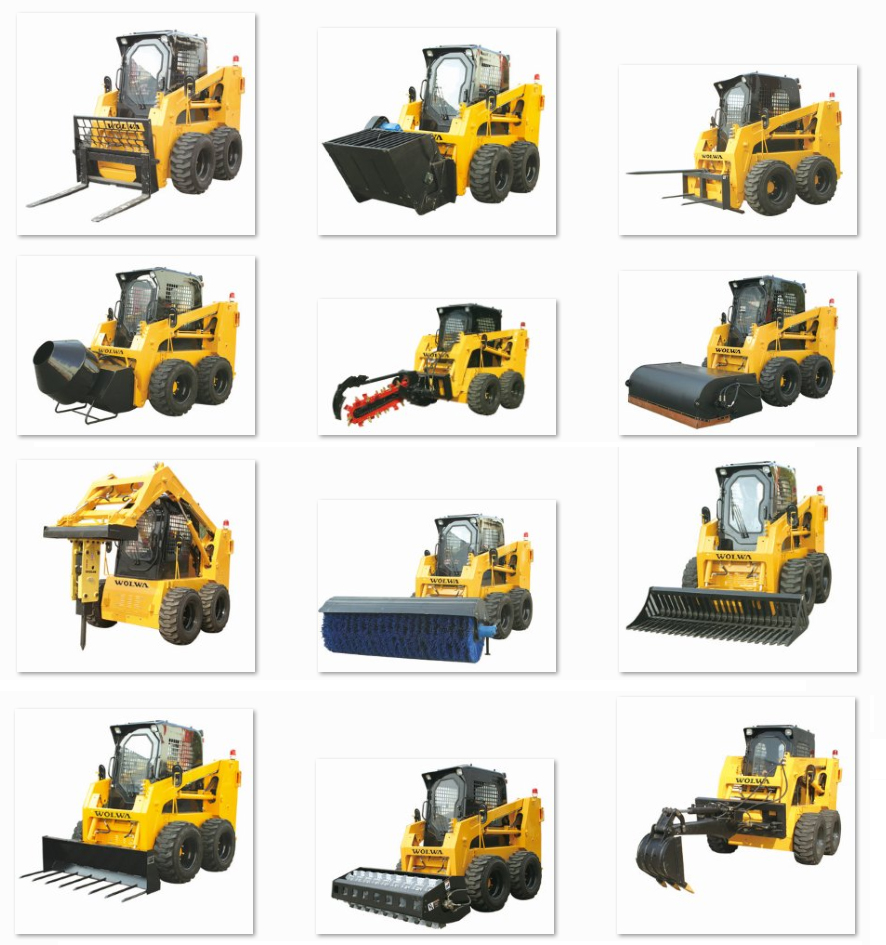

辅具Attachments: |
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More |
