GNHC65 skip steer loader

GNHC65 skip steer loader

Please call:
+86-537-6588123

GNHC65 skip steer loader specifications

整机性能Specifications



额定载荷Rated operating capacity(kg)

950

倾翻载荷Tipping load(kg)

1900

铲斗容量Bucket capacity(m3)

0.5-0.6

机器操纵质量Operationg weight(kg)

3400

行驶速度Max. travel speed(km/h)

12

工作流量Hydraulic pump flow(L/min)

75

油箱容量Fuel tank capacity(L)

90

轮胎型号Tires

12/16.5NHS

整车尺寸Overall dimensions(mm)

3490×1820×2150

整机参数Dimensions



最大操作高度Height at maximum extension(mm)

4070

铰接销高度Height to bucket hinge pin(mm)

3100

带斗宽度Width with bucket(mm)

1880

轮距Track width(mm)

1500

轴距Wheelbase(mm)

1085

离地高度Ground clearance(mm)

200

倾倒角Dump angle

30°

倾倒高度Dumping height(mm)

2450

接近角Rollback at ground

26°

离去角Angle of departure

20°

发动机Engine



型号Maker/Model

新柴498T

功率转速Net power

75hp/2500rpm

类型Type

直喷直列水冷四冲程柴油机
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine

排量Displacement(L)

3.2

标准配置Standard



封闭驾驶室Deluxe enclosed operator cab



手动控制Hand control system(Mechanical type)



标准铲斗Standard bucket



辅具输出装置Auxiliary hydraulic couplers



可选配置Optional



低温起动装置Prehest starting assist system for extreme cold weather



内置暖风Cab fitted with a heater as standard



冷暖空调Air conditioner



双速系统2-speed transmission system



辅具Attachments:挖掘机、破碎锤、推土板、钻孔机、清扫机、叉铲、开沟机、抓木叉、组合铲等

Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More

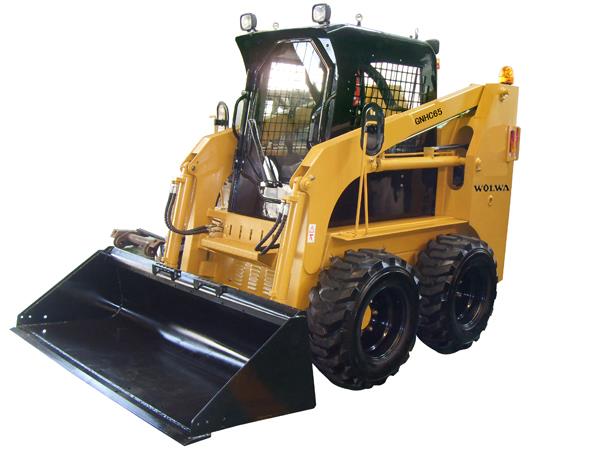

GNHC65 skip steer loader picture


GNHC65 skip steer loader





 Attachment

GNHC65 skip steer loaderGNHC65 skip steer loader
