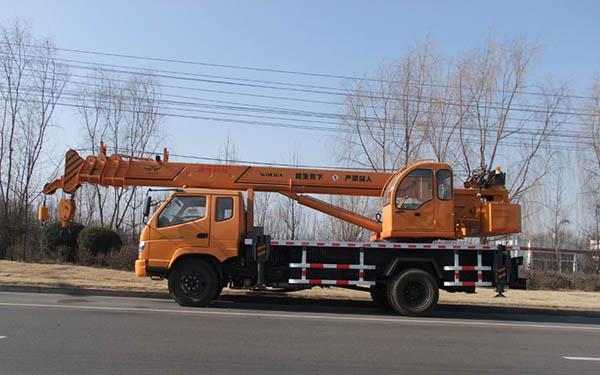

GNQY-898 12T crane

driving more comfortable and safe. Can be installed motor pump station, environmental.

Please call:


GNQY - 898 type crane is the first approved by national authority inspection institutions of the country's small truck crane, with tang lily specialized automobile lifting do walking chassis, driving more comfortable and safe. Can be installed motor pump station, directly to a 380 v power supply for the power, save the environment. The product through the national motor vehicle of the public announcement, across the country are on the license plate, and purchase expense and other operation is free of charge, flexible, convenient products price is low, suitable for rural and urban and rural integration of work. Low investment, high grade product returns.
In order to reduce the risk of the customer, the company also the accessory for each product to the China life property co., LTD., in a year of value with product quality liability insurance


underpan Tangjun 898
Engine type YZ4DA1-40
Engine power 95ml/kw
arm octagon, 7m*5,telescopic type,balancing valve,cylinder telescopic
hydraulic system integrated hydraulic valve combind,composite action
turning system steering hydraulic
lifting structure A2F56 oblique type piston motor winch,BM5-195 cycloid motor winch
rotating structure swing support,WC-120 revolving reducer,NO.3 center rotate
rotating way 360 deg.continous rotate
braking system gas-off braking
hydraulic force mechanism two function(oil and elecricity)
cab operating cab
power type 15kw,level 6 motor pump
outrigger operating way hydraulic automatic


GNQY-Dongfeng Qitou 12T crane

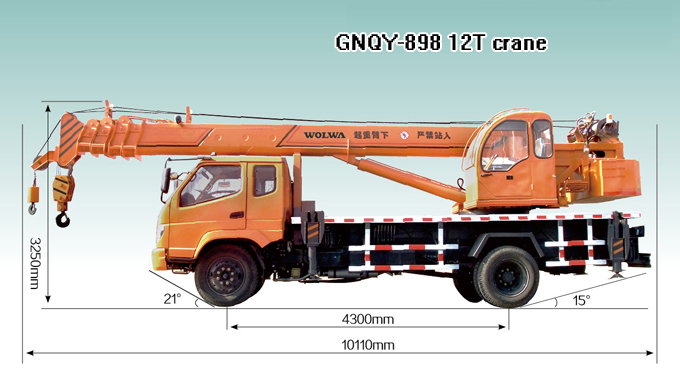

10110mmX2450mmX3250mm  Front angle:21°  rear angle:15°

Product Feature

1.Full hydraulic pressure drive, electrical dual-purpose, safe and reliable work, high efficiency, low labor intensity;

2.Every hydraulic system equipped with balancing valve and hydraulic lock, safe and reliable performance

3.Lifting hoist adopts often closed hydraulic brake, also optional hydraulic hoist

4.Crane jib and important components are made of low alloy steel plate to reduce weight of crane, crane performance;

5.Rotary bearing all adopt 50 mn forging materials

6.6 tons and above the crane main fittings adopt xugong/dongyue original accessories, such as: the main valve main pump, winding system and rotation system, slewing bearing

7.Boom of cold forming, rectangular, five prismatic structure, give full play to the mechanical properties of the material

8.Adopts hydraulic cylinder telescopic crane boom, work more safety and reliable

9. Equipped with night light, expanded the work time.

Telescopic crane boom using marker and alarm limit of double insurance;

10.Optional bridge before and after, negative arm and three-phase electric operation;

11.Crane display options torque, height limiter;

12.Cranes are equipped with the radiator, more conducive to the summer job;

13.Hydraulic oil line rubber hose all adopt double wire super high pressure oil pipe, steel pipe are all made of electroplating processing;

working scope(m) boom length(m)
7.7 18 28
lifting weight(Kg) lifting height(m) lifting weight(Kg) lifting height(m) lifting weight(Kg) lifting height(m)
3.0 8000 7.71
3.5 7000 7.40 4500 19.34
4.0 5800 6.99 4000 19.21
4.5 4200 6.40 3600 19.05 2400 29.14
5.0 3200 5.75 3300 18.89 2185 29.08
6.0 2550 3.40 2950 18.54 2100 28.85
7.0     2500 18.10 1900 28.55
8.0     1800 17.56 1580 28.22
9.0     1350 16.90 1380 27.85
10.0     1000 16.18 1100 27.44
11.0     800 15.34 900 26.98
12     550 14.37 700 26.47
13         580 25.91
14         450 25.29
15         320 24.62
16         240 23.87
17         180 23.06
wire rope ratio 6 4 2
hook weight:80Kg
