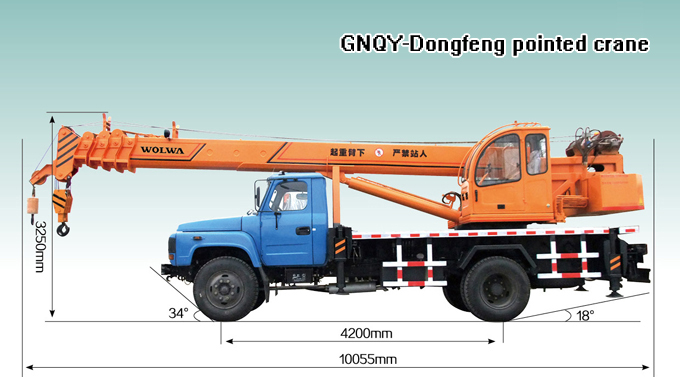

GNQY-Dongfeng pointed crane

flexible operation 12 tonnes of small truck crane,driving more comfortable and safe

Please call:

Product introducton

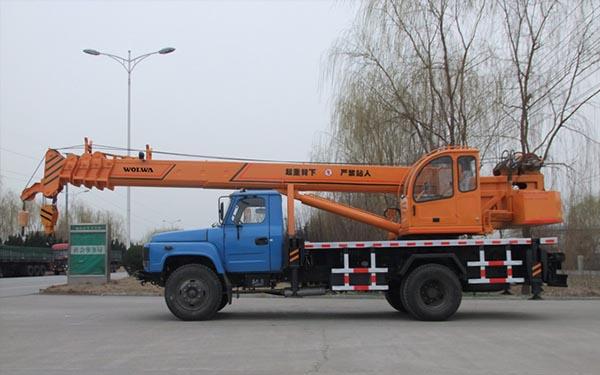

GNQY - dongfeng pointed type crane is a kind of good performance of flexible operation 12 tonnes of small truck crane, walking by dongfeng pointed car hoisting chassis, driving more comfortable and safe. Can be installed motor pump station, directly to a 380 v power supply for the power, save the environment. The product through the national motor vehicle of the public announcement, across the country are on the license plate, and purchase expense and other operation is free of charge, flexible, convenient products price is low, suitable for rural and urban and rural integration of work. Low investment, high grade product returns.

In order to reduce the risk of the customer, the company also the accessory for each product to the China life property co., LTD., in a year of value with product quality liability insurance.


underpan Dongfeng pointed type
Engine type YC4E140-42 turbo charger
Engine power 103kw
arm octagon, 7m*5,telescopic type,balancing valve,cylinder telescopic
hydraulic system integrated hydraulic valve combind,composite action
turning system steering hydraulic
lifting structure oblique type piston motor winch,BM5 cycloid motor winch
rotating structure high strength,large dia.swing support,planets revolving reducer,NO.5center rotate
rotating way 360 deg.continous rotate
braking system gas-off braking
hydraulic force mechanism two function(oil and elecricity)
cab operating cab
power type 15kw,level 6 motor pump
outrigger operating way hydraulic automatic


GNQY-Dongfeng Qitou 12T crane


1.The machine lifting operation all adopt the hydraulic transmission and control, so the flexible operation of the light, smooth action.

2.The machine adopts four telescopic arm, can according to need any adjustable, can not only improve the working efficiency, but also expand the work scope.

3. This machine is equipped with two-way hydraulic lock, one-way balancing valve, relief valve, shuttle valve, winding often close-type brake, to ensure the safety of the crane in operation.

4.Crane arm, chassis, leg with high strength low alloy structural steel manufacturing, reduce the weight, improve the ability of the crane.

5.Spacious, eye shot is open, cab to crane operators to provide good working conditions and environment to rest.

6.Using H leg, four leg can leveling respectively, leg span bigger, to improve the stability of the machine.

7.Hanging arm with u-shaped cross section, the stress state of crane jib can wait until the corresponding improvement.

working scope(m)m man arm length
outrigger work behind
8.5m 14.8m 21.3m 28m
3.0 12000
3.5 10500 6450
4.0 9900 6000 4000
4.5 9050 5450 3600
5.0 8300 4950 3200
5.5 7500 4450 2800 1900
6.0 6500 4000 2500 1450
7.0   3550 2000 1150
8.0   3000 1450 950
9.0   2050 1100 800
10.0     850 700
12.0     450 600
14.0       550
16.0       500
18.0       450
20.0       200
wear rope ratio 6 4 4 2
hook weight 160kg

Caution :

1 The parameters on the form is provided in after condition:crane on hard and level surface , weight box within 1200kg bob-weight,the result is behind operation, for reference only。when working in side ,the weight reduce 30% .

2 On the thick line value based on crane arm strength,under the think line value based on stablility of crane.

3 The weight of lifting include the weight of lifting hook and other lifting equipment.

4 Amplitude in the table is actual parameter after lifting weight ,it is the distance between plumb line of Suspended weight and Center of gyration.

5 When the actual length of arm between two parameters ,according to the bigger arm length and amplitude ensure lifting weight.

6 Working with jib ,the parameter of lifting weight reduce 450kg.
