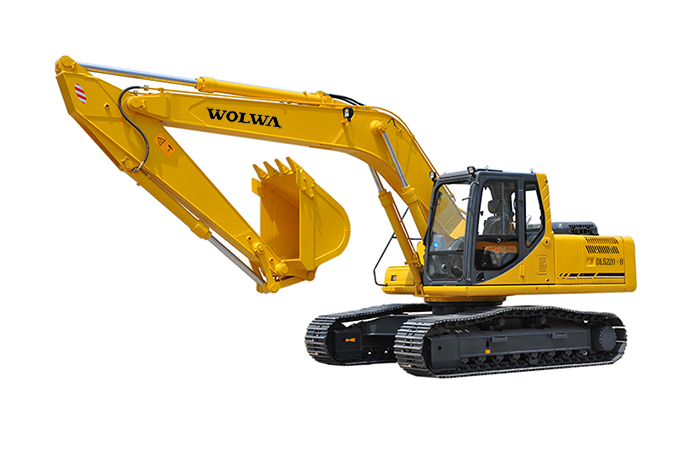

DLS220.8 type excavator configuration cummins and isuzu engine respectively, can be used to satisfy different customer requirements.
DLS220.8 type excavator configuration cummins and isuzu engine respectively, can be used to satisfy different customer requirements. Adopt new bridge, increase seal sound-absorbing material, the cab noise reduction processing; Using new seat, the new armrest box and the safety lock, wiring harness adopt waterproof connector, increases the comfort, the driver's operation reliability, improving the driving environment. New monitoring CPU with artificial intelligence and automatic diagnosis function to help users better save fuel. Movable arm joint adopts integral cast steel structure, the overall strength increase, at the same time to strengthen the work unit, improve the device structure.
| type | DLS220.8 | unit |
| weight | 21.2 | ton |
| bucket capacity | 1.0 | m³ |
| engine type | CUMMINS 6BG1T | |
| power | 120/2150 | kw/r/min |
| speed | 5.2/3.5 | km/h |
| rotate speed | 11.7 | r/min |
| grabeability | 70 | % |
| bucket digging force | 138 | KN |
| ground pressure | 45.8 | KPa |
| max flow | 200*2 | L/min |
| fuel tank capacity | 350 | L |
| hydraulic tank capacity | 246 | L |

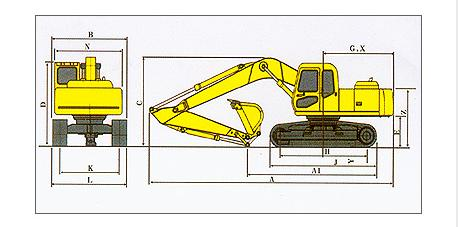

| maximum digging height | 9275 | mm |
| maximum Dumping Height | 6560 | mm |
| maximum digging depth | 6515 | mm |
| maximum vertical wall digging depth | 5915 | mm |
| least radius of gyration | 3630 | mm |
| total length | 9540 | mm |
| total width | 2780 | mm |
| total height(Movable arm top) | 3040 | mm |
| total height(cab roof) | 3120 | mm |
| Movable arm length | 5700 | mm |
| bucket rod length | 2900 | mm |
