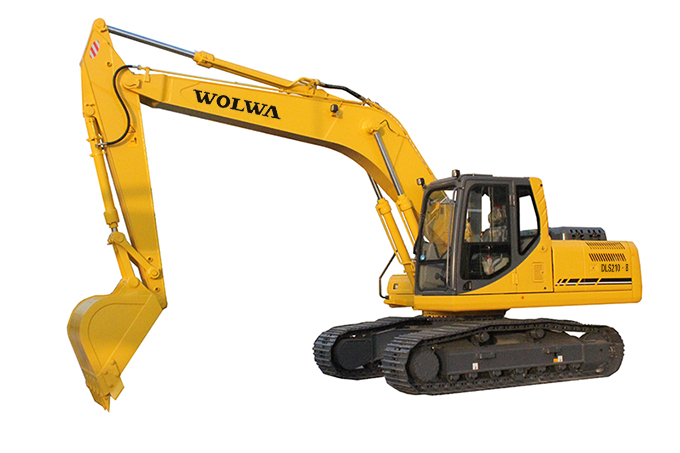

DLS210.8 design development fully absorbs the domestic and foreign advanced technology, movable arm, arm and bucket selects the good welding performance, high strength of high quality material.
DLS210.8 design development fully absorbs the domestic and foreign advanced technology, movable arm, arm and bucket selects the good welding performance, high strength of high quality material, connection support before and after the movable arm adopts integral cast steel structure, rotary turntable can be 360 degrees, grounding than the small, passing ability, on soft land bridge using silicone oil shock absorber, improve the driving comfort.
| type | DLS210.8 | unit |
| weight | 20.9 | ton |
| bucket capacity | 0.93 | m³ |
| engine type | CUMMINS 6BTAA5.9 | |
| power | 112/2100 | kw/r/min |
| speed | 5.2/3.5 | km/h |
| rotate speed | 11.7 | r/min |
| grabeability | 70 | % |
| bucket digging force | 138 | KN |
| ground pressure | 45.2 | KPa |
| max flow | 200*2 | L/min |
| fuel tank capacity | 350 | L |
| hydraulic tank capacity | 246 | L |
| maximum digging height | 9275 | mm |
| maximum Dumping Height | 6560 | mm |
| maximum digging depth | 6515 | mm |
| maximum vertical wall digging depth | 5915 | mm |
| least radius of gyration | 3630 | mm |
| total length | 9540 | mm |
| total width | 2780 | mm |
| total height(Movable arm top) | 3040 | mm |
| total height(cab roof) | 3120 | mm |
| Movable arm length | 5700 | mm |
| bucket rod length | 2900 | mm |
