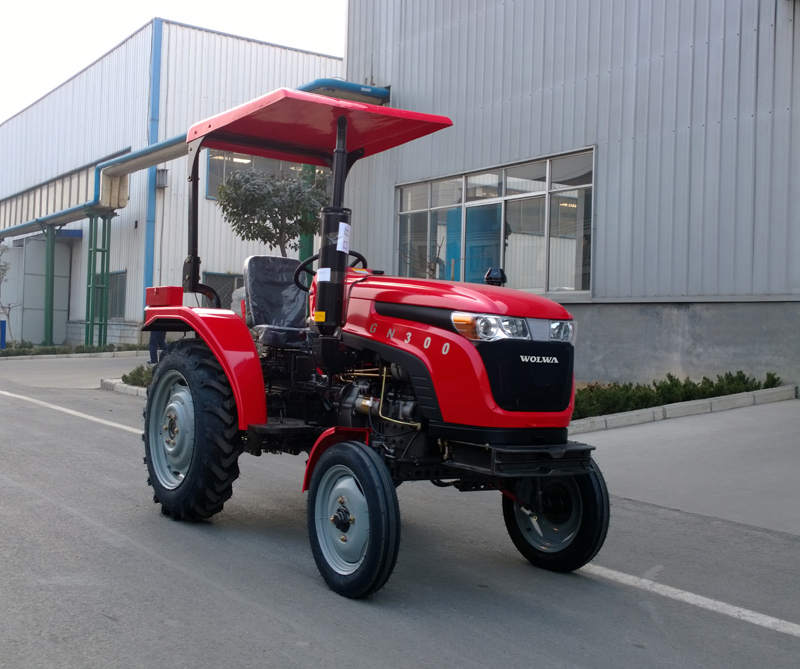

Model

GN300

General Specifications

Type

4×2

Overall dimensions LxWxH(mm)

3105×1510×2105

Constructional weight(kg)

1260

Rated traction force(kn)

6.4

Wheel base(mm)

1705

Front wheel tread(mm)

1125adjustable

Rear wheel tread(mm)

1170adjustable

Min.land clearance(mm)

440

Min.quality in use(kg)

1390

Front wheel tyre size

                                      5.0-15

Rear wheel tyre size

11.2-24

Engine

Model

SD2100TA

Type

   straight,vertical,water-cooling,four stroke

12 hours power(kw)

22.1

Rated Speed(r/min)

2300

Fuel consumption(g/kw.h)

≤250

Max.torque(N.m)

≥109.8

Speed of Max.torque(r/min)

≤1650

BorexStroke(mm)

φ100×115

Diesel Consumption(g/kW.h)

≤1.84

Starting mode

electric start

Break System

Service Brake

     mechanical,wet,disc

Parking Brake

locking pedal type

Transmission

Clutch

Dry type, one stage(dual stage is optional)

Gear box

Spur gear (4+1) plain compound

Steering

cam and roller steering gear

Steering type

front wheel steering

Main Drive

spiral bevel gear

Differential Mechanism

2 bevel planet gear, closed

Final Drive

external mesh spurtype

Operating System

Lifter tilling depth control

position adjustment

Max.lifting capacity(kn)

≥4.95

Suspension type

    Postpositional,Tree-point,I category

Speed of P.T.O.(r/min)

(540,1000), or(720,1000) (540,720)

Type of P.T.O.

semiindependent

Traction Equipment

fixed or swing draw bar

Optional Devices

   Air brake, dual-stage clutch, Rops and Canopy
