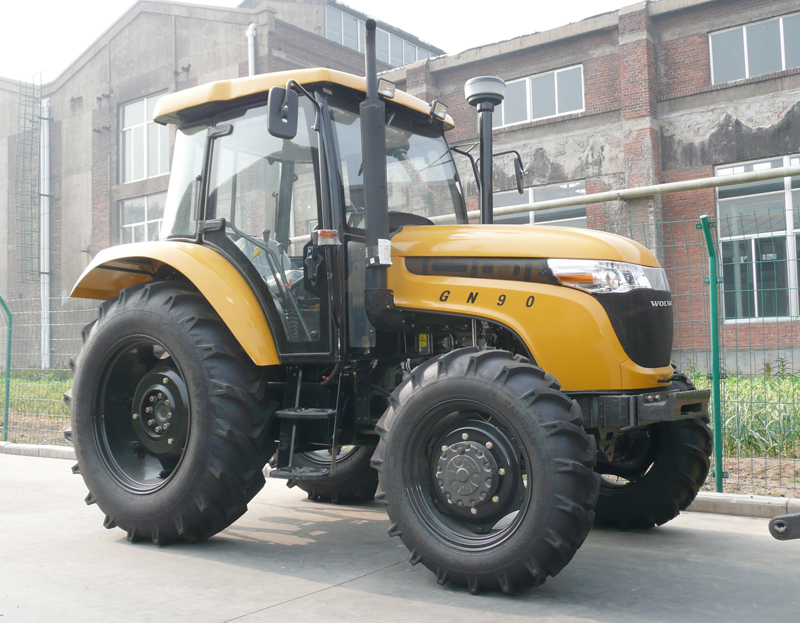

GN90 tractor

RAPHAEL drive wheeled tractor is designed especially for export, different models from 20hp to 130hp for customer to choose. The ultimate cross trainer. Flexible, versatile, powerful and efficient, RAPHAEL series tractor, will outperform your expectations. Outstanding fluid economy you don't have to decide between power and fluid economy, you get both. Tough conditions won't slow you down, the larger diameter and longer frootprint give you more surface engagement and greater traction to keep you moving.

Please call:
+86-537-6588123

Introduction

RAPHAEL drive wheeled tractor is designed especially for export, different models from 20hp to 130hp for customer to choose . The ultimate cross trainer. Flexible, versatile, powerful and efficient, RAPHAEL series tractor, will outperform your expectations. Outstanding fluid economy you don't have to decide between power and fluid economy, you get both. Tough conditions won't slow you down, the larger diameter and longer frootprint give you more surface engagement and greater traction to keep you moving. RAPHAEL tractor adopts a big compacted chassis and Chinese famous brand turbo charge diesel engine (YTO, Changchai, Yuchai etc.). Having the feature of low fuel consumption and large tractive force, it can save 15% fuel, increase 20% efficiency. Raphael Tractors are suitable for dry land, hilly land, orchard and other farm lands or for vegetable farm and gardening use. Raphael Tractors also can be used with farm implements, such as front end loader and backhoe, disc. harrow and plough, rotary tiller, seed drill, trailer, mower ,or generator etc, all are available.

Features:

  1. Engine: Xinchai Brand,large torque backup and low fuel consumption;
  2. Clutch: Independent 10-inch double action  clutch;
  3. Gearbox: 4X3(1+1),12 forward gears+12  reverse gears, mesh sleeve shift;
  4. Cylinder: Split-type and high-pressure  lifter with four cylinder;
  5. Steering: Full hydraulic front-wheel  steering with independent circuit;
  6. Brake: Reliable hydrostatic disc brake  with large brake torque;
  7. Output: Stable and independent power  output, with 6-spline 540/1000 r/min;
  8. Gear: Planet-gear final transmission with  small volume and large reduction ratio;
  9. Linkage: Rear three-point linkage, tire  (front wheel+rear wheel) is 6.0-16+12.4-28
  10. Cabin: Cabin with air-conditioner and  comfortable seat.

Parameters

Tractor    Model

GN400

GN450

RL500

GN550

GN700

Driver    Type

4 * 2

Dimension

Without    Cabin: L *W * H(mm)

3875*1620*1550

3925*1728*1750

With    Cabin: L* W *H(mm)

3875*1620*2450

3925*1728*2640

Wheel    base(mm)

1940

1950

2010

Front    wheel tread(mm)

1200 --1500 (Common    1300)

Rear    wheel tread(mm)

1200--1500(Common    1300)

Mini    ground clearance(mm)

330

360

450

Mini turning radius

Unilateral    brake(m)

3.3

Not    unilateral brake(m)

3.7

Mini    Using Weight(KG)

1840

2060

2340

Numbers    of the gear?

12F+12R

Speed

Forward(kw/h)

2.46-34.02

2.33-31.04

Reverse(kw/h)

2.15-29.82

2.04-27.21

Engine

Model

C490BT-8

A495BT

A498BT-6A

A4K41T55-002

A4K43T70A

Marked    power (KW)

29.4

33.1

36.8

40.4

51.5

Rated    revolution (r/min)

2400

2300

Tires    type

Front

6.00-16

8.3-24

Rear

12.4-28

13.6-28

14.9-28

Steering

Hydraulic

Max.lifting    capacity( KN )

6.7

7.5

8.28

9.1

13.5

PTO

Type

Postposition,    Semi-detached

Speed    (r/min)

540/1000, 6 Spine

Power(kw)

More than 25

more than 28.1

more than 31.3

more than 34.3

more than 43.8

Control type of plough depth

?Height adjustment and floating control


Front    / rear Ballast (kg)

104/220

104/300

Notice:All    above parameters are subject to change without notice because of rapid    development of products.
