1- Famous brand: Taishan brand with long history and good reputation; 2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system; 3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance; 4- High adaptability: matches all kinds of agricultural implements; 5- Diverse gear combinations: creeping shift and shuttle shift; 6- Comfortable operation: full hydraulic system;
Characteristics:
1- Famous brand: Taishan brand with long history and good reputation;
2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system;
3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance;
4- High adaptability: matches all kinds of agricultural implements;
5- Diverse gear combinations: creeping shift and shuttle shift;
6- Comfortable operation: full hydraulic system;
1)Type:4*4

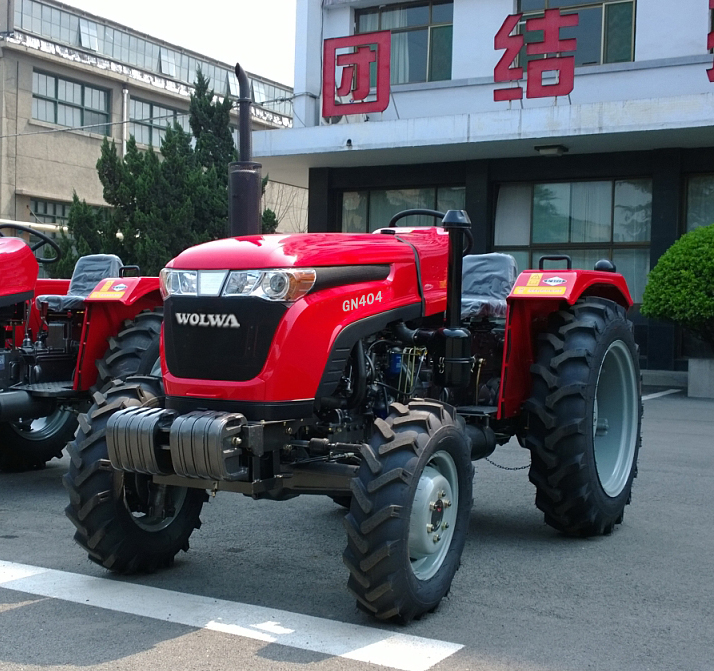

2)Tractor Model:GN404
3)Wheel base(mm):1950
|
Model |
GN404 |
|
|
General Specifications |
Type |
4×4 |
|
Overall dimensions LxWxH(mm) |
3360x1490x2100 |
|
|
Constructional weight(kg) |
1775 |
|
|
Rated traction force(kn) |
12.0 |
|
|
Wheel base(mm) |
1950 |
|
|
Front wheel tread(mm) |
1285adjustable |
|
|
Rear wheel tread(mm) |
1205adjustable |
|
|
Min.land clearance(mm) |
|
|
|
Min.quality in use(kg) |
1905 |
|
|
Front wheel tyre size |
7.5-16 |
|
|
Rear wheel tyre size |
11.2-28 |
|
|
Min.turning radius(mm) Unilateral Braking/Unilateral Nonbraking) |
3.8±0.2/3.3±0.2 |
|
|
Engine |
Model |
GN490T |
|
Type |
straight,vertical,water-cooling,four stroke |
|
|
12 hours power(kw) |
29.4 |
|
|
Rated Speed(r/min) |
2300 |
|
|
Fuel consumption(g/kw.h) |
≤245 |
|
|
Max.torque(N.m) |
≥165 |
|
|
Speed of Max.torque(r/min |
≤1725 |
|
|
BorexStroke(mm) |
φ90×105 |
|
|
Diesel Consumption(g/kW.h) |
≤2.04 |
|
|
Starting mode |
electric start |
|
|
Break System |
Service Brake |
mechanical,wet,disc |
|
Parking Brake |
locking pedal type |
|
|
Transmission |
Clutch |
Dry type, one stage(dual stage is optional) |
|
Gear box |
Spur gear (4+1) plain compound |
|
|
Steering |
cam and roller steering gear |
|
|
Steering type |
front wheel steering |
|
|
Main Drive |
spiral bevel gear |
|
|
Differential Mechanism |
2 bevel planet gear, closed |
|
|
Final Drive |
external mesh spurtype |
|
|
Operating System |
Lifter tilling depth control |
position adjustment |
|
Max.lifting capacity(kn) |
≥6.62 |
|
|
Suspension type |
Postpositional,Tree-point,I category |
|
|
Speed of P.T.O.(r/min) |
(540,1000), or(720,1000) (540,720) |
|
|
Type of P.T.O. |
semiindependent |
|
|
Traction Equipment |
fixed or swing draw bar |
|
|
Optional Devices |
Air brake, dual-stage clutch, Rops and Canopy, Draft and position adjustable lifter |
|
