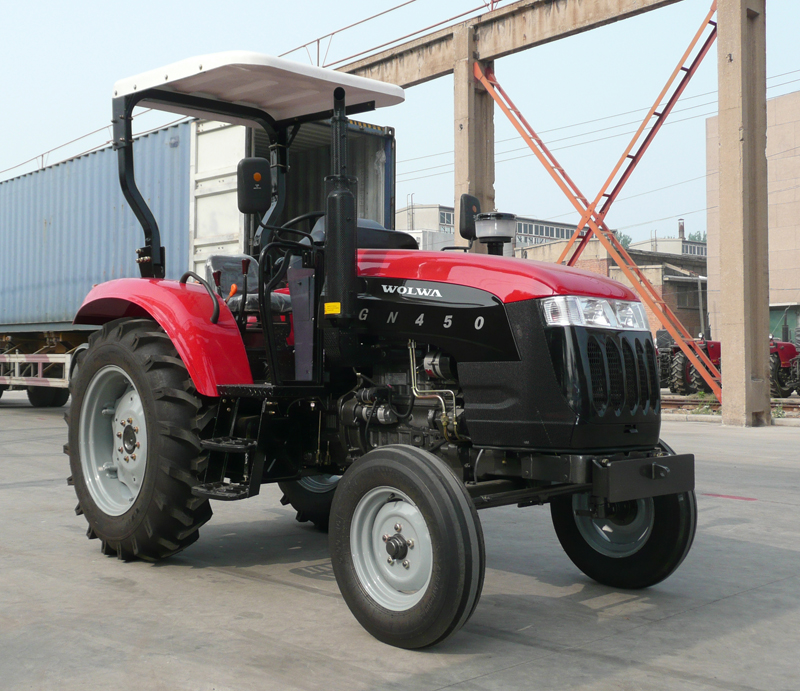

GN450 tractor

1)Type:4*2 2)Tractor Model:TS450 3)Wheel base(mm):2044

Please call:
+86-537-6588123

Specifications

1)Type:4*2
2)Tractor Model:TS450
3)Wheel base(mm):2044

Model

GN450

General Specifications

Type

4×2

Overall dimensions LxWxH(mm)

3829×1708×2200/2550

Constructional weight(kg)

1790/2180

Rated traction force(kn)

9.1

Wheel base(mm)

2044

Front wheel tread(mm)

1270(1270-1670) adjustable

Rear wheel tread(mm)

1320(1220-1620) adjustable

Min.land clearance(mm)

420

Min.quality in use(kg)

1950/2330

Front wheel tyre size

6.0-16

Rear wheel tyre size

12.4-28

Min.turning radius(mm)  Unilateral Braking/Unilateral Nonbraking)

3.8/3.4





Engine

Model

JD495T

Type

 straight,vertical,water-cooling,four stroke

12 hours power(kw)

33.1

Rated Speed(r/min)

2300

Fuel consumption(g/kw.h)

245

Max.torque(N.m)

170

Speed of Max.torque(r/min)

1725

BorexStroke(mm)

φ95×105

Diesel Consumption(g/kW.h)

2.04

Starting mode

  electric start

Break System

Service Brake

  mechanical,wet,disc

Parking Brake

  locking pedal type

Transmission

Clutch

 Dry type,singgle disk,two stage, constant mesh

Gear box

8 forward gear,4 reverse gear,direct gear compound shaft, creeper gear optional

Steering

  hydraulic steering

Steering type

  front wheel steering

Main Drive

 spiral bevel gear

Differential Mechanism

pin type,2 bevel planet gear,closed

Final Drive

single stage,external, planet gear type

Operating System

Lifter tilling depth control

top-link sensing,draft and position control

Max.lifting capacity(kn)

7.5

Suspension type

Postpositional,Tree-point,I category

Speed of P.T.O.(r/min)

(540,1000), or(720,1000) (540,720)

Type of P.T.O.

 Postpositional, semiindependent

Traction Equipment

 swing draw bar

Optional Devices

 creeping gear,shuttle gear,air brake,rollbar and canopy,sealed luxury cabin and multi-way hydraulic output
