1.Gear, wide speed range.With 16 forward, eight reverse gear;1.58 ~ 33.67 km/h speed range, can meet various requirements, high work efficiency; 2. Lord, vice gear meshing swap file, convenient operation, helical gear drive, smooth transmission, low noise, high carrying capacity; 3. The whole floor structure, suspension type of pedal and control handle side, make the control more convenient and comfortable;

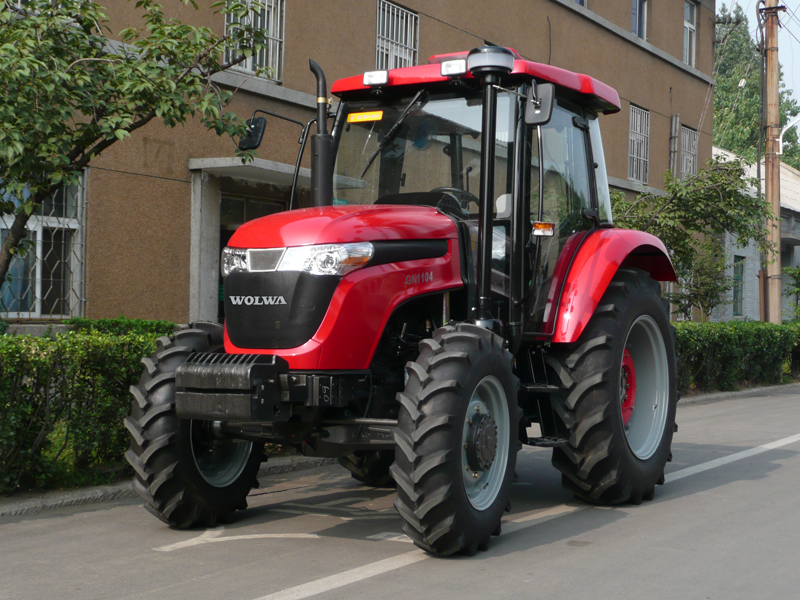

120 hp Multipurpose farm tractor
Overall dimensions 4270*2050*2915mm
Meshing swap file
4 tons farm tractor
1.Gear, wide speed range.With 16 forward, eight reverse gear;1.58 ~ 33.67 km/h speed range, can meet various requirements, high work efficiency;
2. Lord, vice gear meshing swap file, convenient operation, helical gear drive, smooth transmission, low noise, high carrying capacity;
3. The whole floor structure, suspension type of pedal and control handle side, make the control more convenient and comfortable;
4. Full hydraulic steering, lightweight, flexible manipulation
5. Independent type two-speed motor output 760/1000 or 540/1000, can meet various requirements;
6. Hydraulic lift system can realize a comprehensive regulation, floating control.Options crush oil cylinder, realize machine forced the grave, the promotion ability, double set of hydraulic output quick change device.
7. All-wheel-drive front drive axle Angle is big, good maneuverability, high ground clearance, sealing well;
8. Elegant ray Norman hood, auto electrophoresis technology, luxurious and beautiful, durable.
|
model |
GN1104 |
|
|
Shift way |
Meshing swap file |
|
|
Engine type |
QuanChai QC4112ZT or yuchai YC4A130L |
|
|
The 12 h power/calibration speed (kW/r/min) |
81/2300 |
|
|
Overall dimensions (mm) |
4270×2050×2915 |
|
|
wheelbase (mm) |
2208 |
|
|
Track width (mm) |
front wheel |
1590~1830 |
|
rear wheel |
1638~2038 |
|
|
Minimum use of quality (kg) |
4003 |
|
|
clutch |
Independent control double-acting clutch |
|
|
steering |
Cycloid rotary valve type hydraulic steering |
|
|
Brake system |
Mechanical drive, hydraulic disc brake |
|
|
tire |
12.4-24/16.9-34 |
|
|
Power output power and speed (kW, r/min) |
65 / double speed or higher power output options 540/1000 760/1000 |
|
